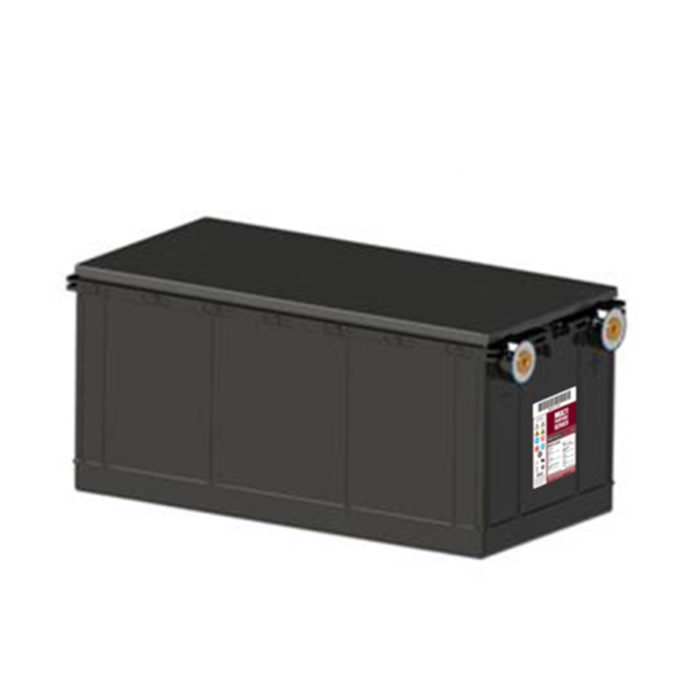

MPS 12-200

10 year design life.
Robust plate for extended life.
Flame-arresting one-way pressure-relief vent for safety and long life.
Absorbent Glass Mat (AGM) technology
for efficient gas recombination of up to
99% and freedom from electrolyte
maintenance.
Multicell design for economy of
installation and maintenance.
Computer designed lead, low Calcium
alloy grid for minimal gassing and ease
of recycling.
UL-recognized component.
True Front Access terminal
designed, for easy installation,
reduced maintenance, and space
saving.
Not restricted for air transport –
Complies with IATA/ICAO Special
Provision A67.
Not restricted for surface transport
– classified as non-hazardous
material as related to DOT-CFR
Title 49 parts 171-189.
Not restricted for water transport –
classified as non-hazardous
material per IMDG Amendment 27.

Telecommunications

General Purpose Applications

Uninterrupted Power Supply (UPS)

Other Float Applications

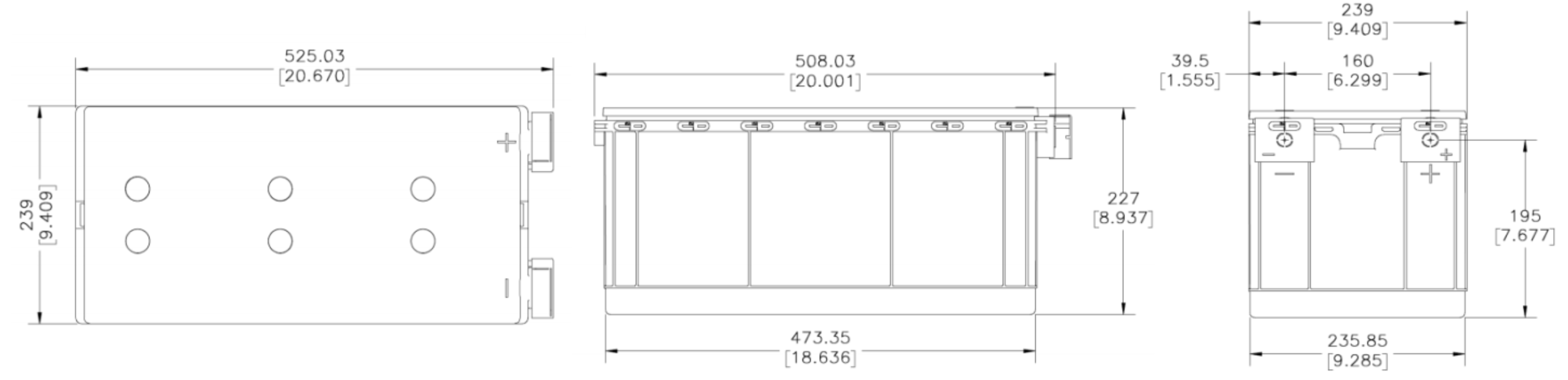

Cells Per Unit	Voltage Per Unit	Weight	IEC Rating (C10, 1.80V @ 20°C)	Capacity (C20, 1.75V @ 25°C)	Dimensions (LWH(Total Height)/mm
6	12V	62.7 kg	174 Ah	200 Ah	525236227(227)

Operating Temperature Range with temperature compensation	Discharge: -40°F (-40°C) to +160°F (71°C). Charge: -10°F (-23°C) to +140°F (60°C)
Recommended Operating Temperature Range	+74°F (23°C) to +80°F (27°C).
Floating Charging Voltage	13.65 ± 0.15 VDC/unit Average at 77°F (25°C).
Recommended Maximum Charging Current Limit	C/5 amperes @ 20 hr. rate.
Equalization and Cycle Service Charging Voltage	14.4 to 14.8 VDC/unit Average at 77°F (25°C).
Maximum AC Ripple (Charger)	0.5% RMS or 1.5% P-P of float charge voltage recommended for best results. Maximum voltage allowed = 1.4% RMS (4% P-P). Maximum current allowed = 5.10 amperes RMS (C/20).
Self Discharge	MPS batteries may be stored for up to 4 months at 77°F (25°C) and then a freshening charge is required. For higher temperatures the time interval will be shorter.
Accessories	Inter unit connectors, racks and cabinet systems are available.
Terminal	Threaded copper alloy insert terminal to accept M8 bolt
Container and Cover Materials	PP (UL94 HB, V-2, V-0 Optional)
