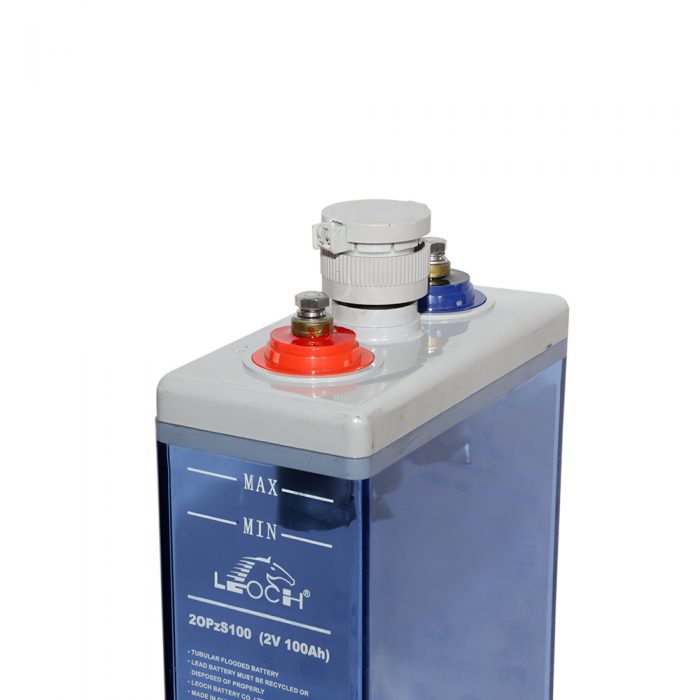

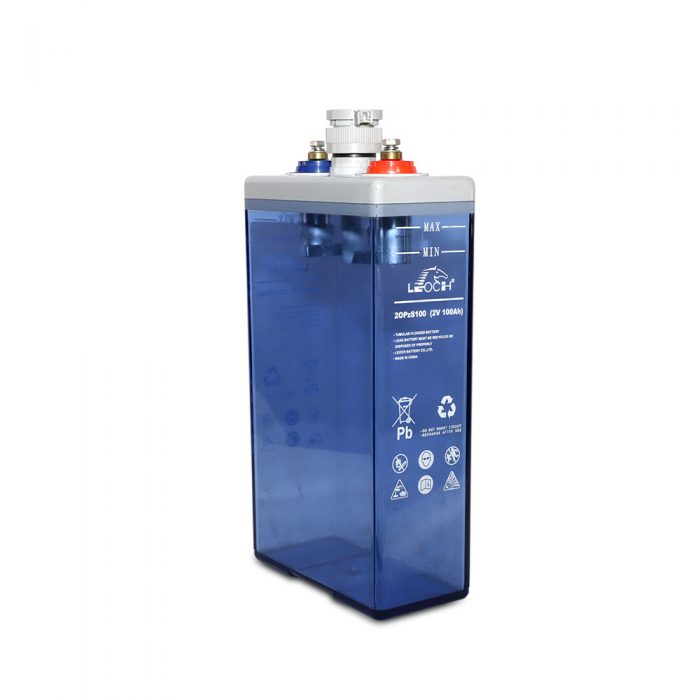

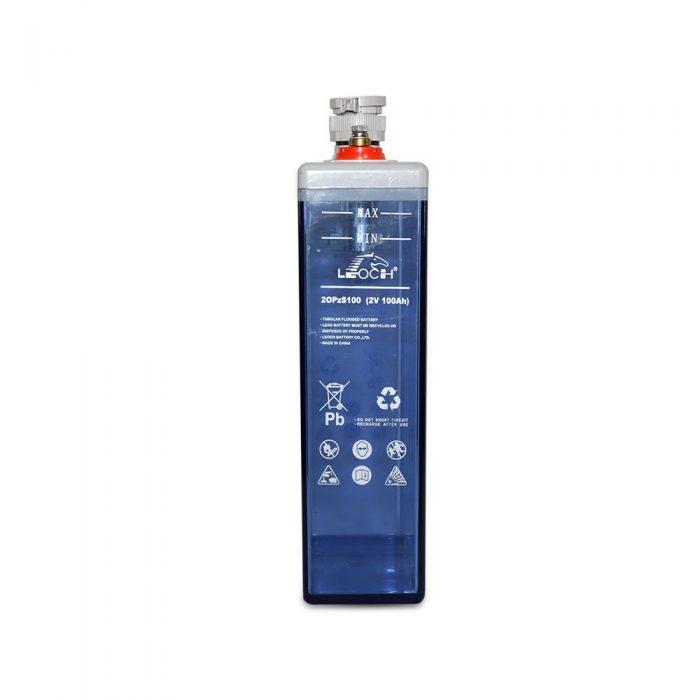

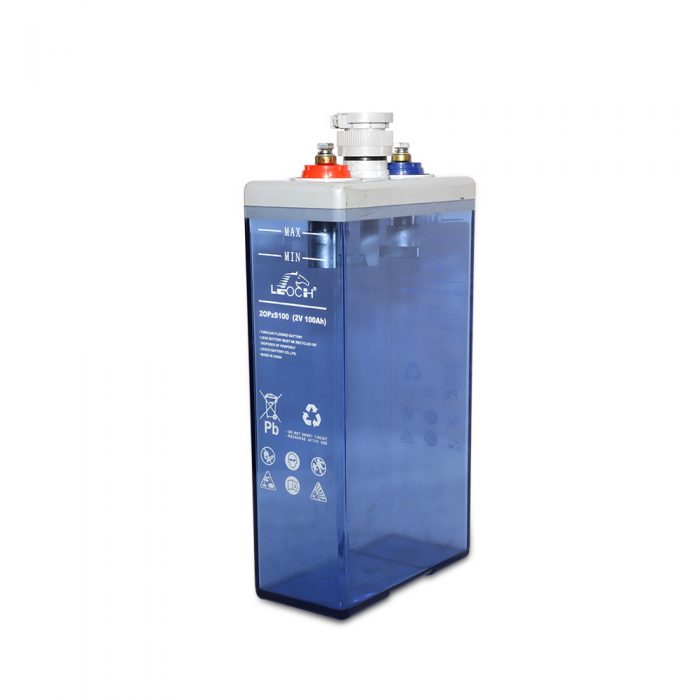

2 OPzS100 (2V100AH)

Design life 12V series 16 years and 2V series 20 years @20°C in continuous float operation down to approx 80% capacity.
Excellent recovery performance
Wide working temperature range (-20~55)℃
No electrolyte stratification provides longer service life
High recombination efficient
Build in copper core based in lead will carry large current
Separator imported form AMER-SIL high porosity. PVC-SiO2 and low resistance
Pasted negative plate special grid design increase the active material.availablity large current discharge and charge ability
Tubuler type positive plate (polyester tube) prevent the active material from falling. Muti metal alloy pressed positive grid increase the anti corrosion ablity and service life

Telecommunications

Radio and cellular telephone relay stations.

Emergency lighting systems.

Power stations, Conventional power stations,

Alternative power (solar, wind).

Large UPS and computer back-up.

Railway signalling.

Maritime standby power on ships and ashore.

Standby power.

Buoy lighting.

Long service life, designed life 15-20 years.

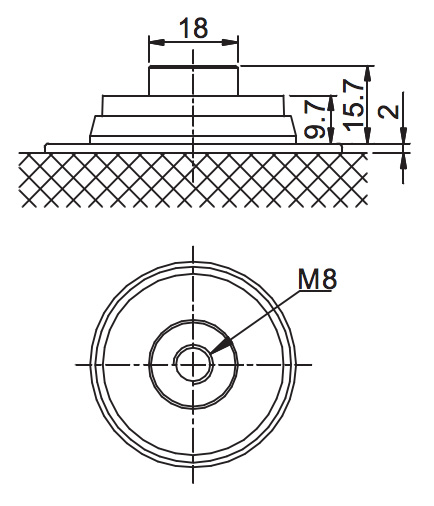

Terminal

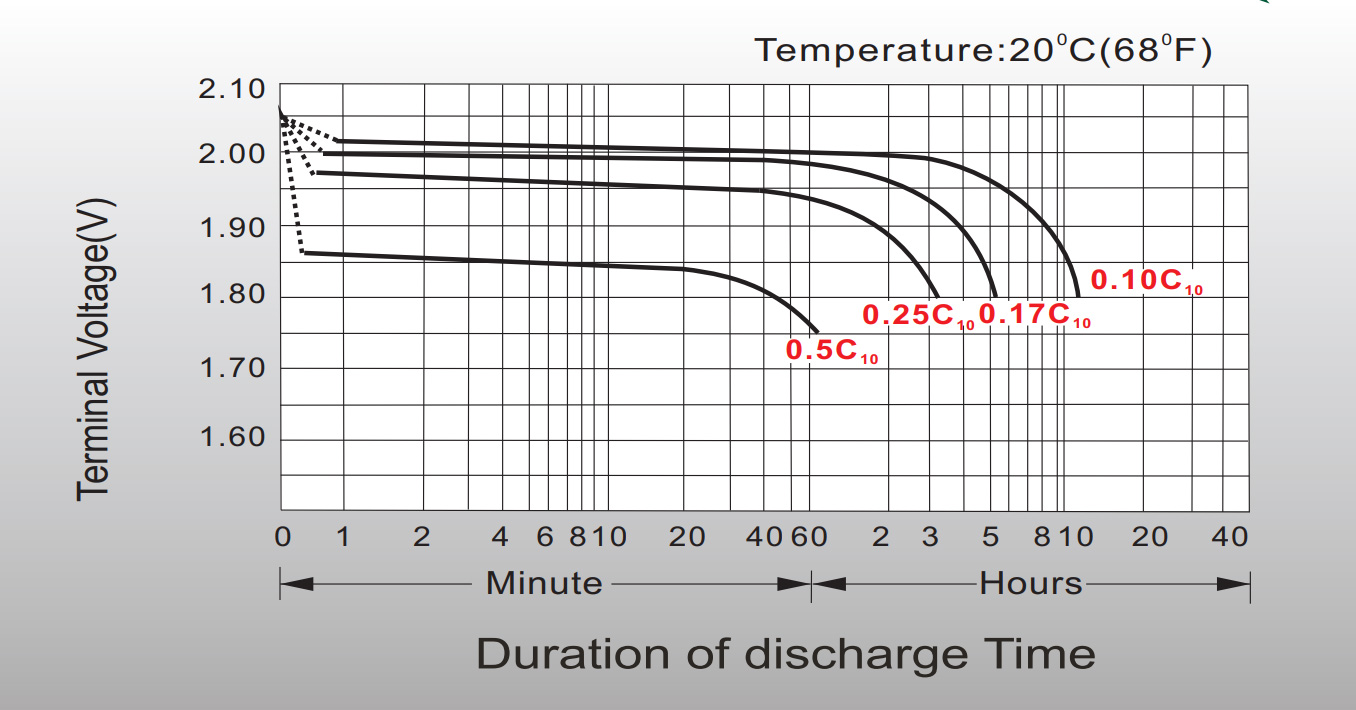

Discharge Characteristics

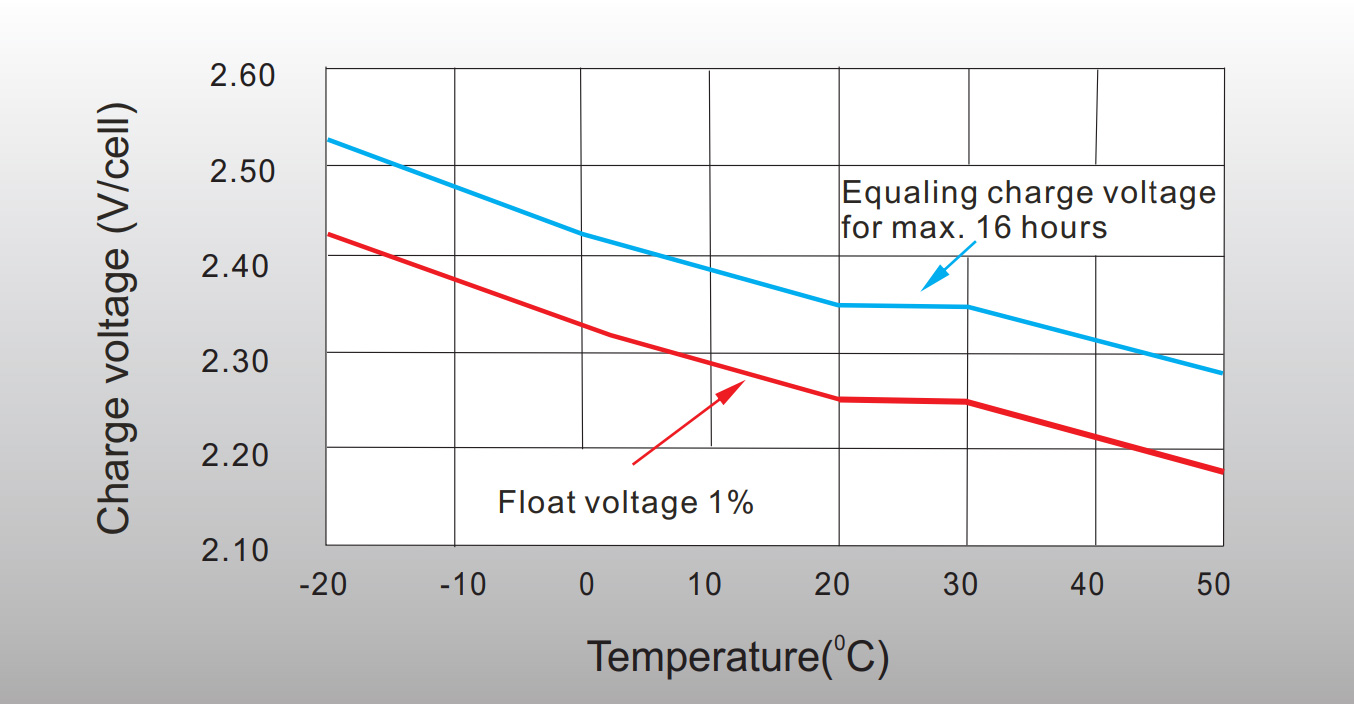

Charge voltage Vs ambient temperature curve

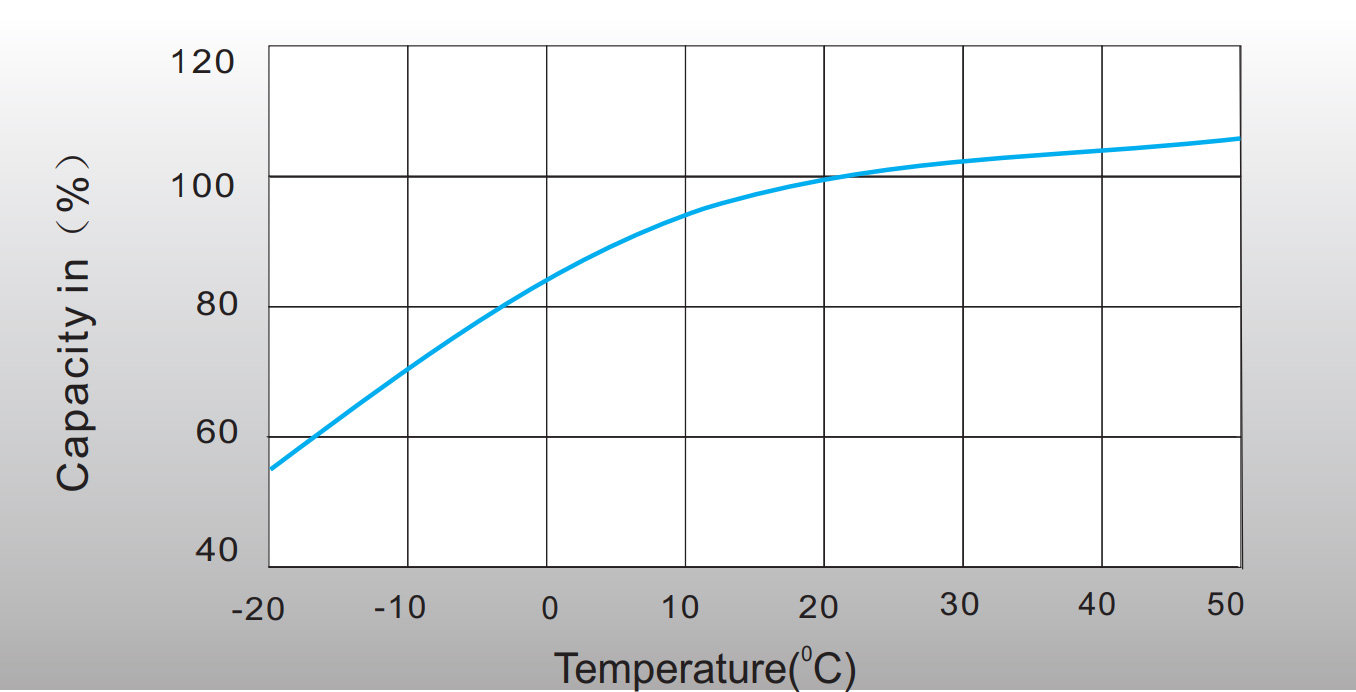

Discharge capacity Vs Ambient temperature curve (I10A)

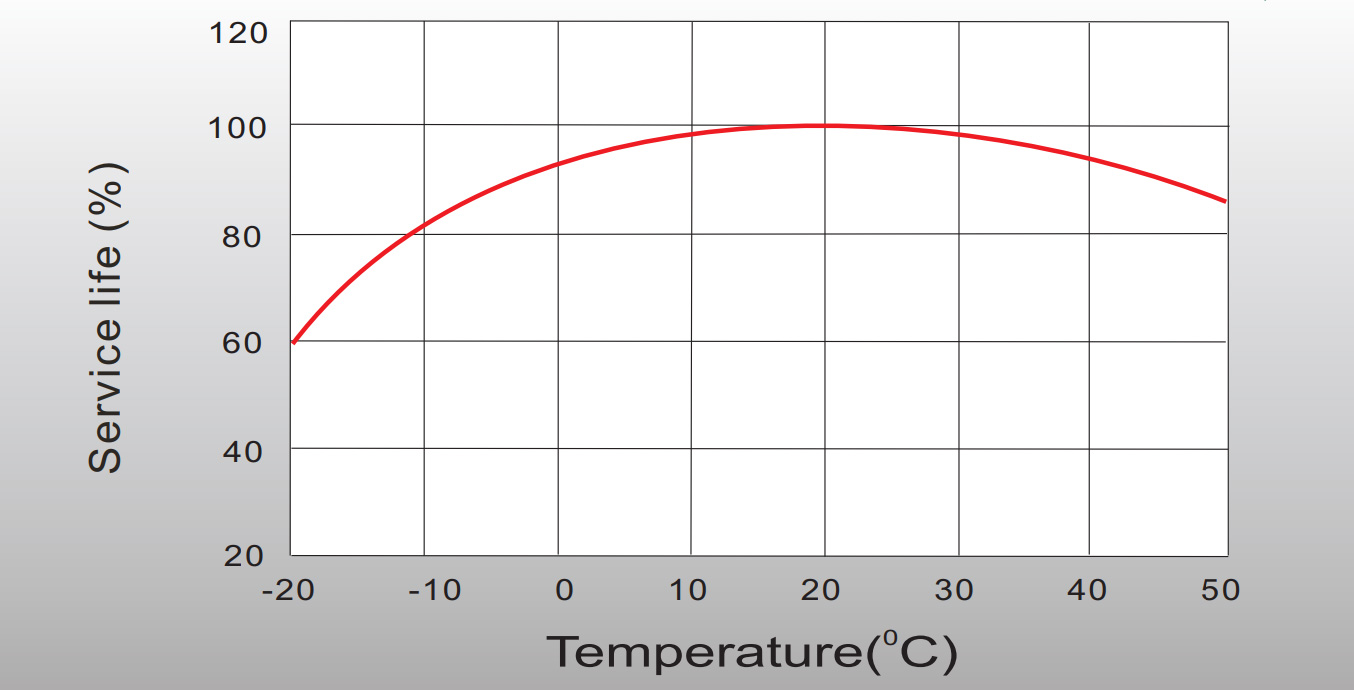

Relantion curves of service life and ambient temperature

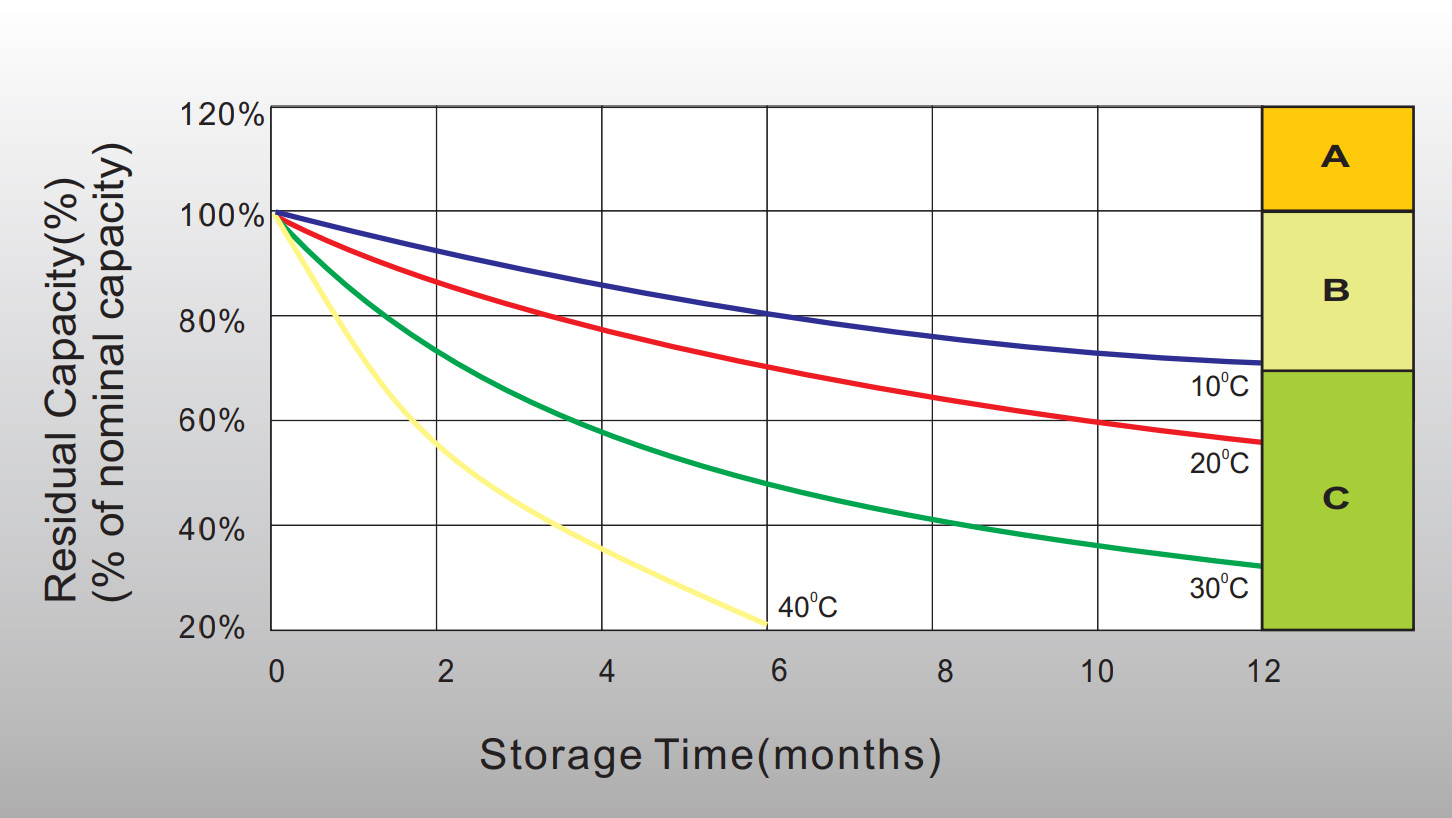

Self Discharge Characteristics

No supplementary charge required(Carry out supplementary charge before use if 100% capacity is required.
Supplementary charge required before use.Optional charging way as below:
1. Charged for above 3 days at limted current 0.1CA and constant volatge 2.25V/cell.
2. Charged for above 20hours at limted current 01CA and constant volatge 2.45V/cell.
3.Charged for 8~10hours at limted current 0.05CA.
Supplementary charge may often fail to recover the capacity. The battery should never be left standing till this is reached.

Nominal Voltage	2V

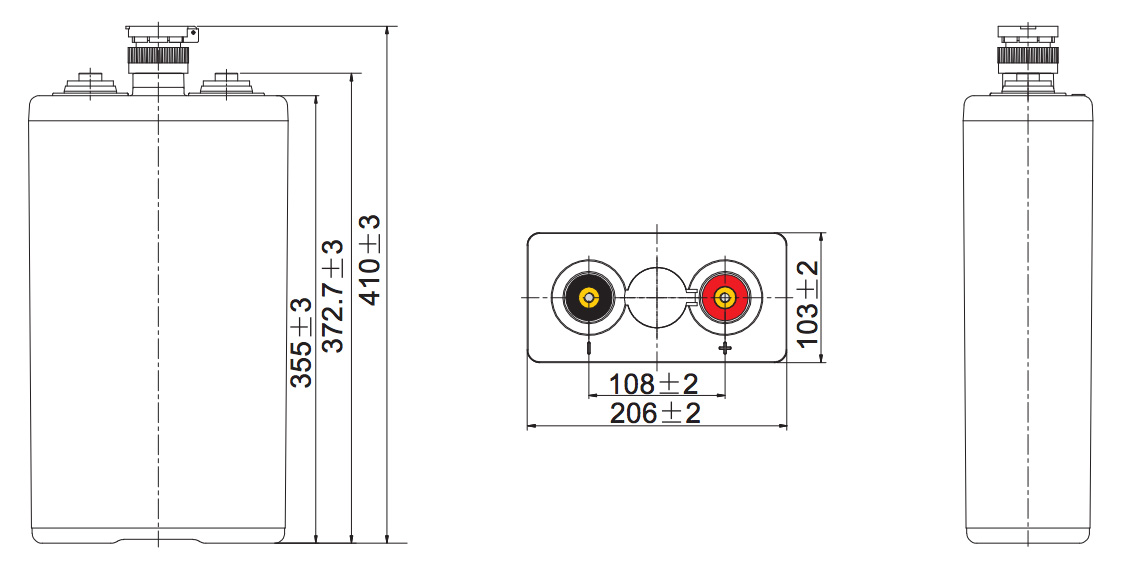

Capacity(10HR)	100.0AH (1.8V/cell,20°C) Length : 103±2mm (4.06 inches) Width : 206±3mm (8.11 inches) Container Height : 355±3mm (13.98 inches) Total Height (with Terminal) : 410±3mm (16.14 inches)
Approx Weight	Without Electrolyte 8.1 kg (17.86lbs) With Electrolyte 13.2kg (29.11lbs)
Container Material	SAN transparent container
Rated Capacity	100.0 AH/10.0A : (10hr ,1.80V/cell,20°C/68°F) 89.0 AH/17.8A (5hr,1.75V/cell,20°C/68°F) 77.1AH/25.7A (5hr,1.75V/cell,25°C/68°F) 57.1 AH/57.1A (3hr,1.75V/cell,25°C/68°F)
Max. Discharge Current	800A (5s)
Internal Resistance	Approx 1.5mΩ
Operating Temp.Range	Discharge : -15～55°C (5～131°F) Charge : 0～45°C (32～113°F) Storage : -15～45°C (5～113°F)
Type and number of poles	M8/2
Charging	Floating voltage: 2.23V~2.25V at 20°C(68°F)Temp. Boost charge: 2.30V~2.40V at 20°C (68°F) Temp. Charging current(max.): 0.1CA Temp.Coefficient 0 -3mV/°C
Capacity affected by Temperature	40°C (104°F) 103% 25°C (77°F) 100% 0°C (32°F) 86%
Self Discharge	Leoch OPzS batteries may be stored for up to 6 months at 20°C (68°F) and then a freshening charge is required. For higher temperatures the time interval will be shorter.
