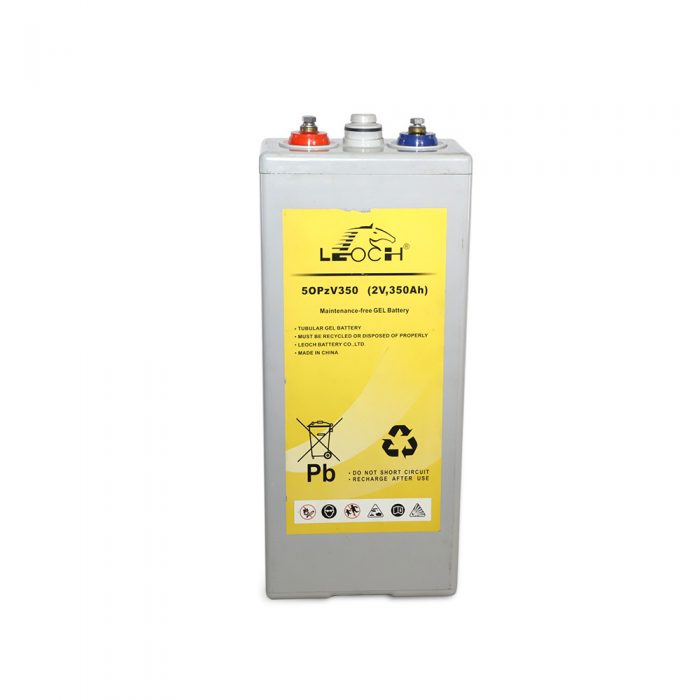

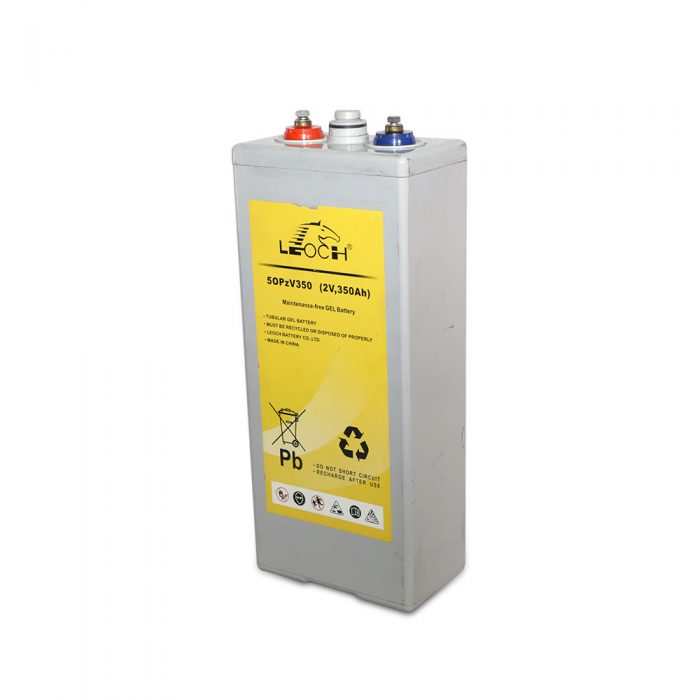

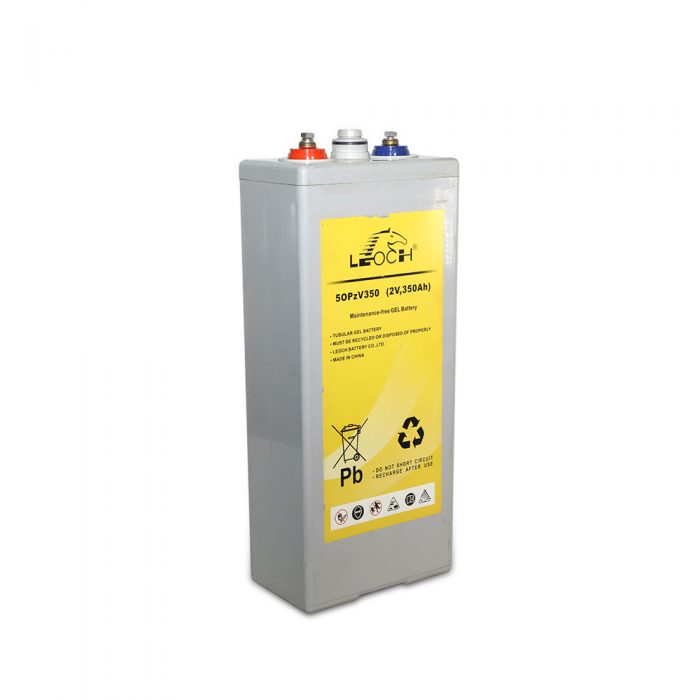

5 OPzV350 (2V350AH)

OPzV Series-Tubular Gel Battery


  • Completely sealing throughout the batteries life.
  • Design life12V series 16 years and 2V series 20 years @20°C in continuous float operation down to approx 80% capacity.
  • Gel electrolyte.
  • Low gassing thanks to antimony-free alloy and internal oxygen recombination.
  • Minimum space required and room requirements are minimal e.g. no washing facilities needed, ventilation requirements are minimal.
  • Easy to move and handle.
  • Easy install using cable connectors with insulated terminal covers.
  • Ready for immediate use without further commissioning work.
  • Can be supplied as a standard vertical installation or by special request, for a horizontal installation.
  • Very low self-discharge 50% of rated capacity in 2 years at 20 ℃ ambient temperature.
  • High cyclic ability over 600 cycles when discharged at 10 hour rate to an end voltage of 1.8Volt/cell at 20℃ .
  • Deep discharge protected, a load can be connected to the battery for up to 4 weeks.
  • No internal short circuits possible due to the gel structure.
  • No acid stratification, so noequalizing charge necessary.

APPLICATIONS

Telecommunications

Electric power, nuclear power

Communication

Ship, maritime affairs

UPS, medical facilities and emergency lighting

Situation with high environmental protection and energy-saving

Better safety performance and reliability

Designed service life of 20 years

DETAILS

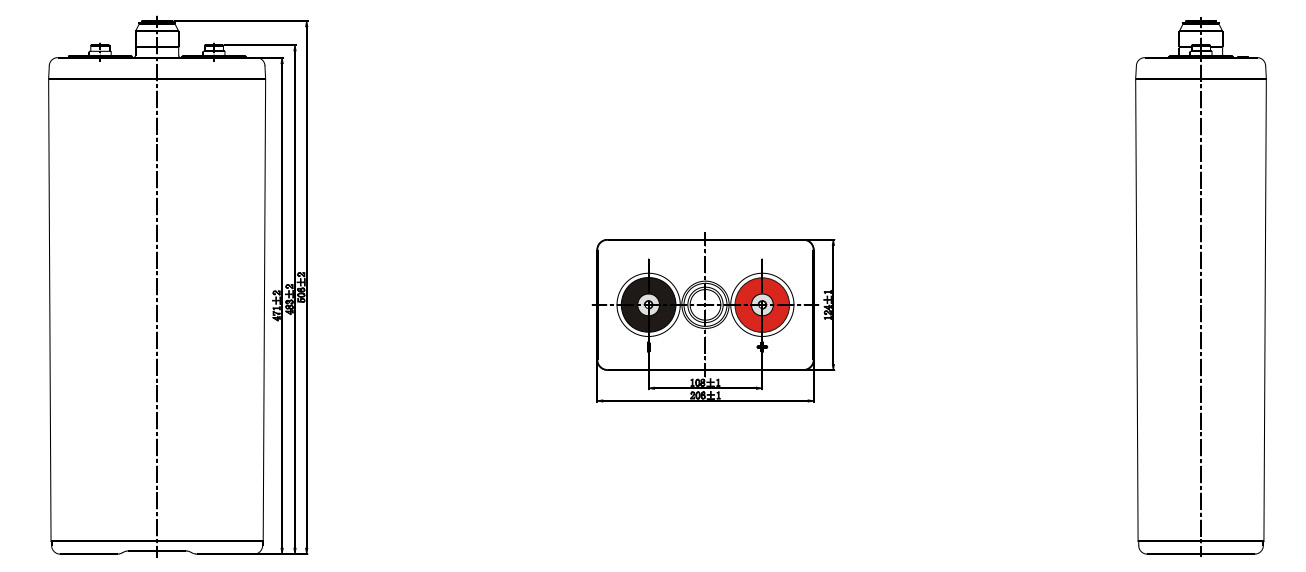

Dimensions

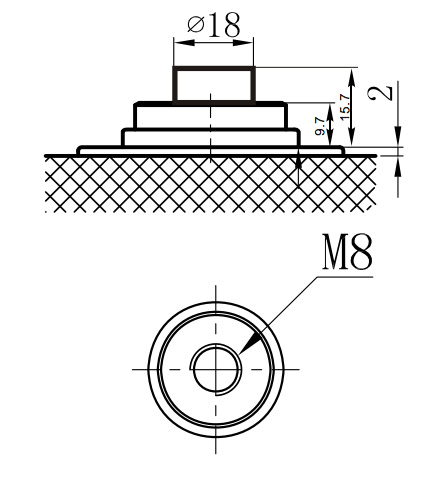

Terminal



Discharge Characteristics

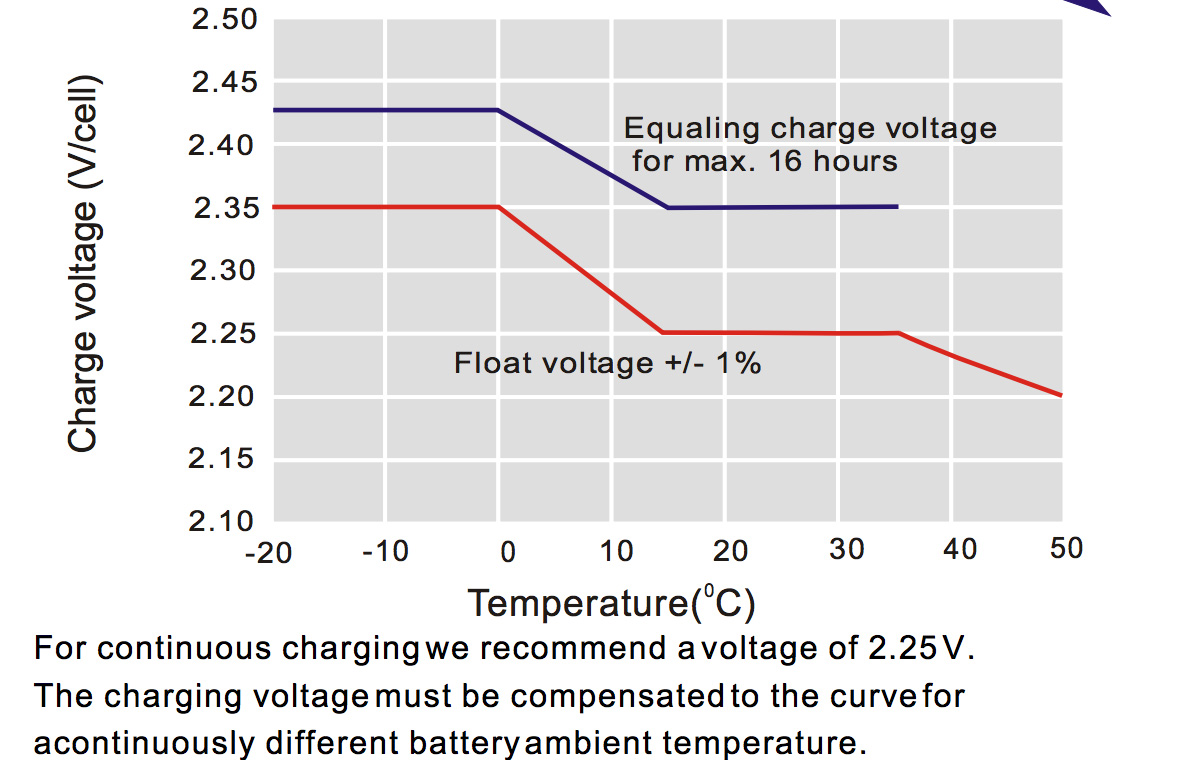

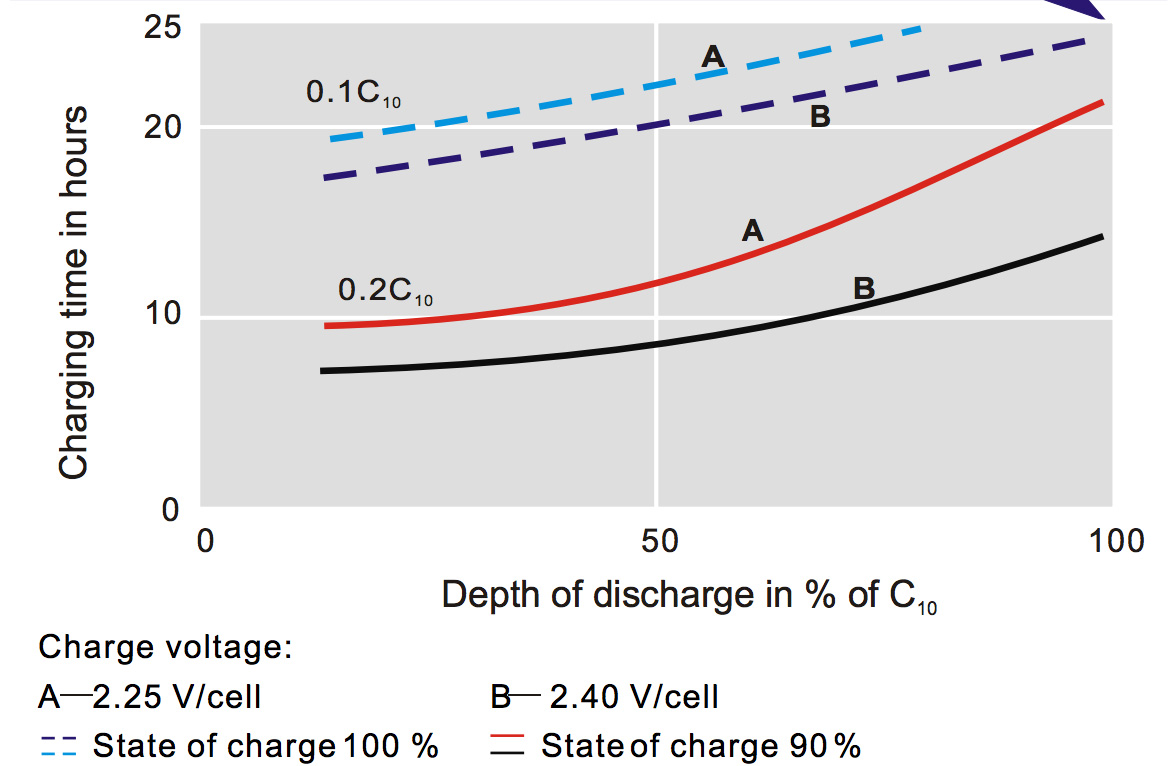

Charging Characteristics

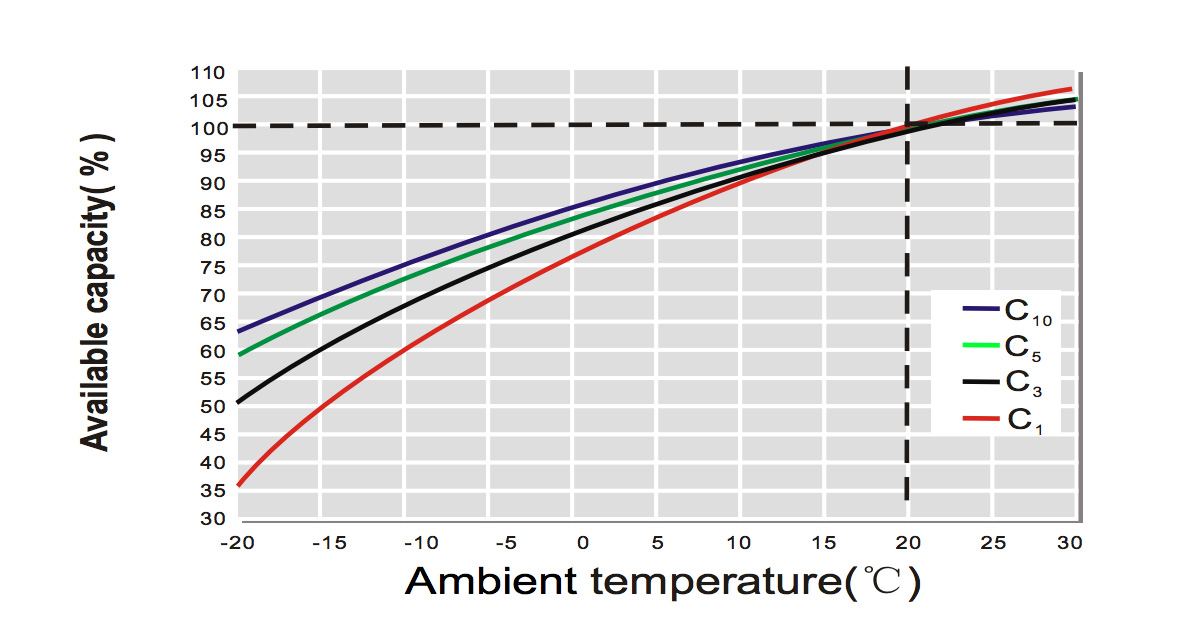

Temperature Effects in Relation to Battery Capacity

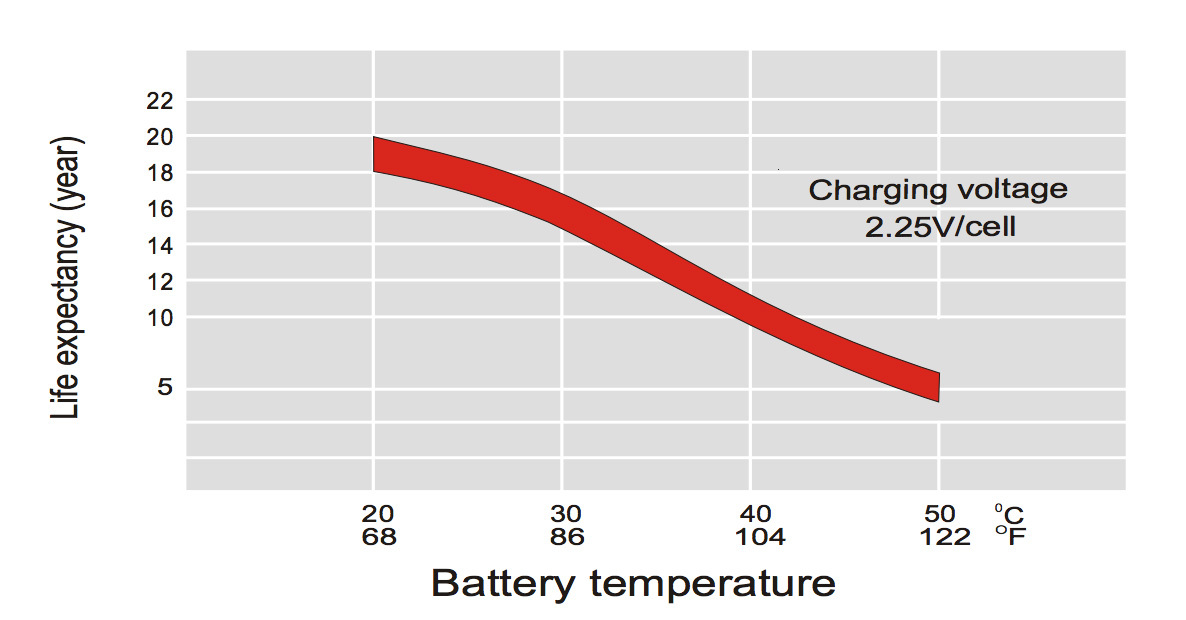

Effect of Temperature on Long Term Float Life

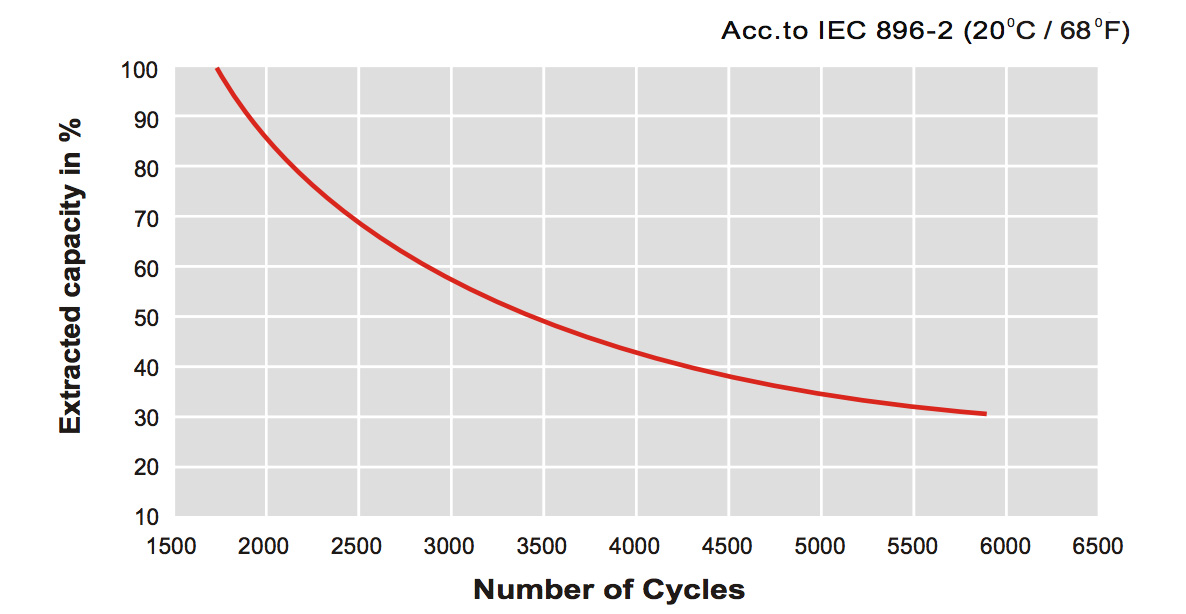

Cycle Life in Relation to Depth of Discharge

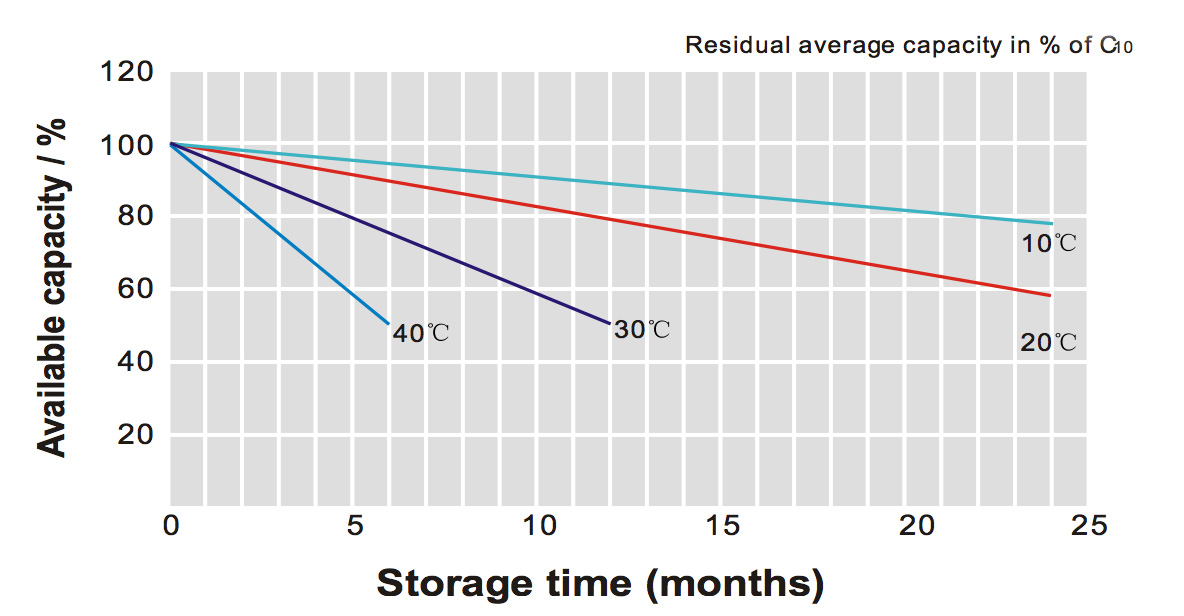

General Relation of Capacity VS. Storage Time

SPECIFICATIONS

Nominal Voltage 2V
Capacity 350.0AH@10hr  (1.80V/cell)
Dimension Length : 145±2mm (5.17 inches)
Width : 206±3mm (8.11 inches)
Container Height : 471±3mm (18.5 inches)
Total Height (with Terminal) : 506±3mm (19.9 inches)
Approx Weight Approx 29.0 kg (63.9lbs)
Container Material ABS
Rated Capacity 350 AH/35.0A : (10hr ,1.80V/cell,20°C/68°F)
305 AH/61.0A (5hr,1.75V/cell,20°C/68°F)
270.4AH/90.1A (3hr,1.75V/cell,20°C/68°F)
199 AH/199A  (1hr,1.60V/cell,20°C/68°F)
Max. Discharge Current 2800A (5s)
Internal Resistance Approx 0.9mΩ
Operating Temp.Range Discharge : -20~55°C (-4~131°F)
Charge : 0~40°C (32~104°F)
Storage : -20~50°C (-4~122°F)
Cycle Use Initial Charging Current less than 70.0A.Voltage 2.40V~2.50V at 20°C(68°F)Temp. Coefficient -5mV/ °C
Standby Use No limit on Initial Charging Current Voltage 2.25V~2.30V at 20°C(68°F)Temp. Coefficient -3mV/ °C
Self-discharge <2% pre month @ 20°C(68°F)
