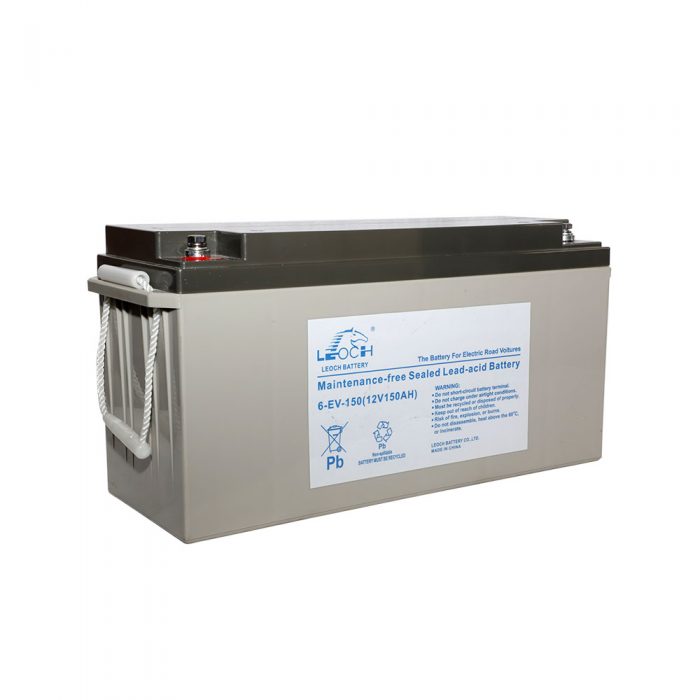

6-EV-150(150AH/3HR)

Electric Vehicle Battery

  • High capacity, high energy density
  • Lower self-discharge, good charge retention performance
  • High conductivity terminals, good for high current discharging
  • Unique valve regulated design, safe and reliable in use
  • Use gel electrolyte, prevent the electrolyte stratification in use
  • Special grid design and paste recipe, increase charge acceptance capability
  • Lead calcium alloy used for grids, lower water loss to realize maintenance free

APPLICATIONS

VRLA battery with long cycle service life

Good high rate discharge performance

Better float charging service life

Can be used as reserve power on a variety of DC equipments, such as electric vehicle, Electric wheelchairs, golf cart, sightseeing bus, prowl car, sanitation vehicle and so on.

DETAILS

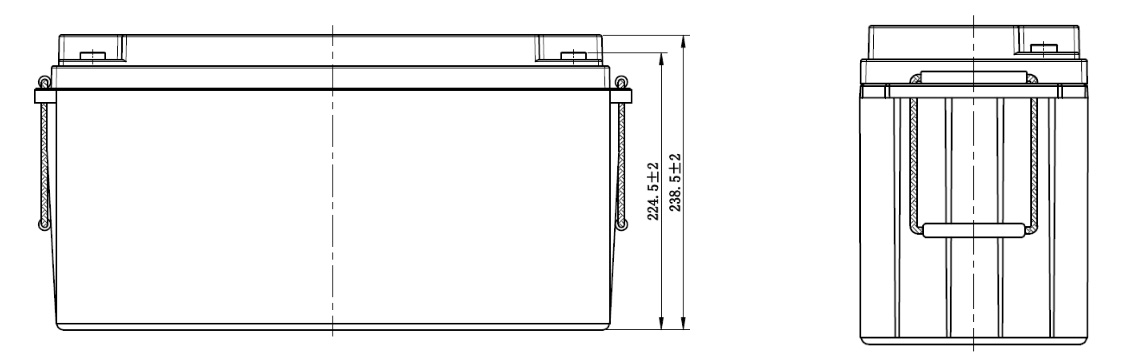

Dimensions

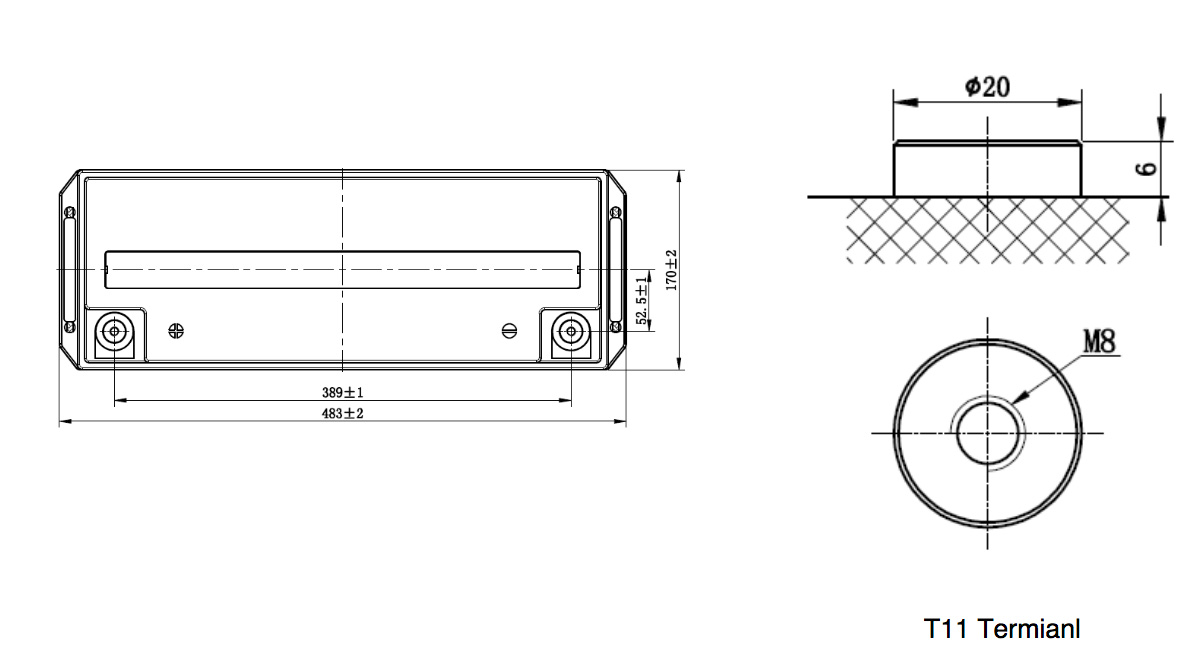

Terminal

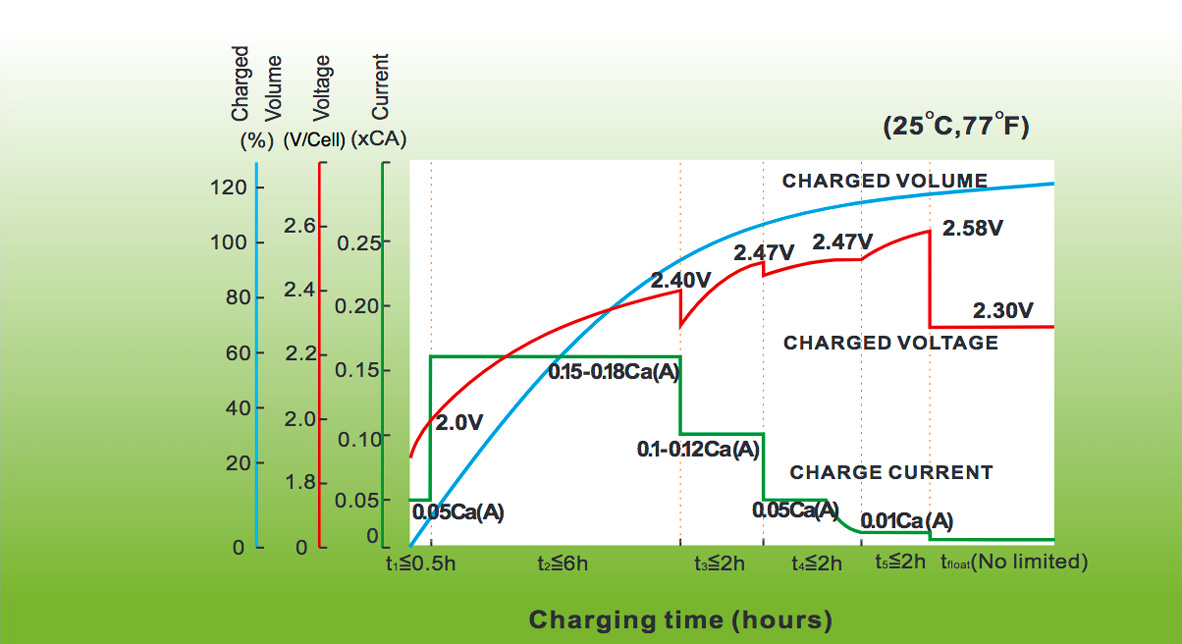

Constant current charging characteristic 25°C

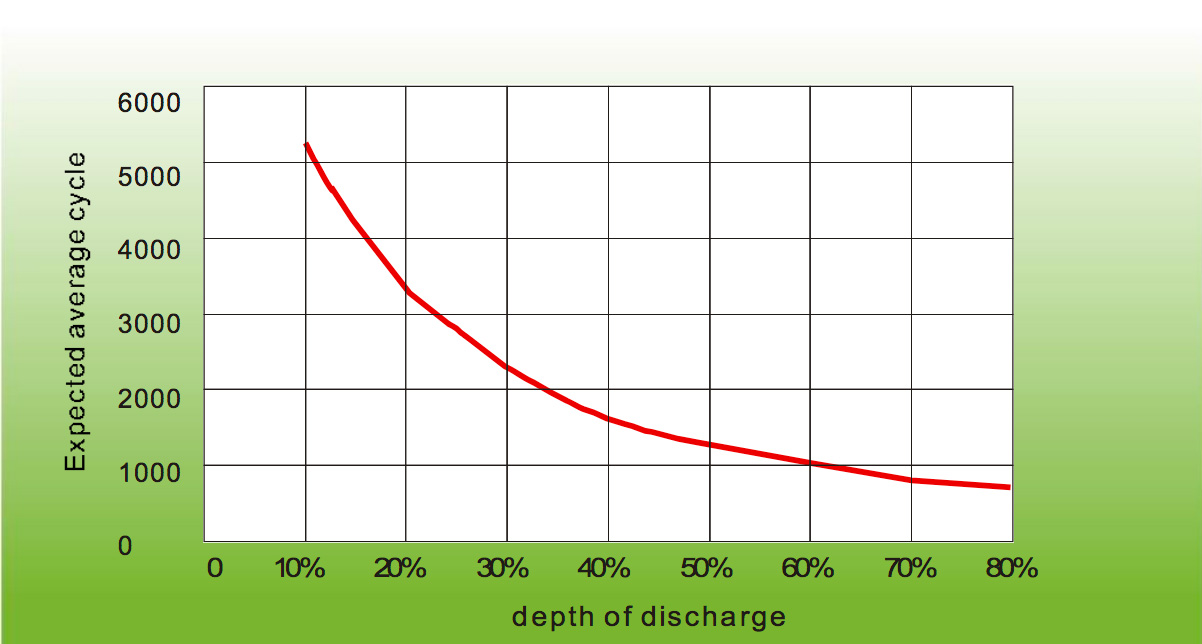

Cycle life in relation to depth of discharge

SPECIFICATIONS

Nominal Voltage 12V
Nominal Capacity 25°C 3hr  (150AH/1.68V/cell)
Dimension Length : 483.0±2mm
Width : 170.0±2mm
Height : 238.5±2mm
Total Height: 238.5±2mm
Range of use temperature Discharge : -20～55°C
Charge : 0～40°C
Storage : -15～50°C
Weight 50.1 Kg
Standard Terminal T11
Container Material ABS
Click here for a complete list of specs
