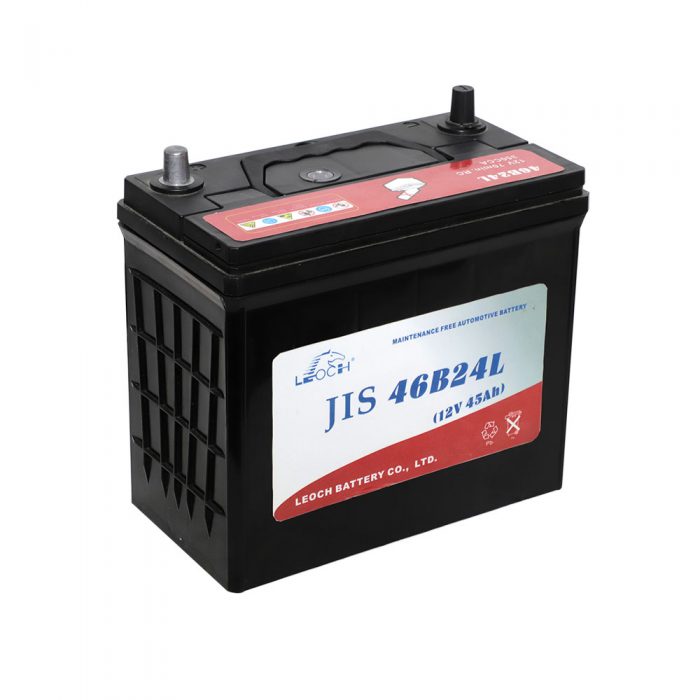

JIS-46B24L-left-side
JIS-46B24L
JIS-46B24L-left-side
JIS-46B24L

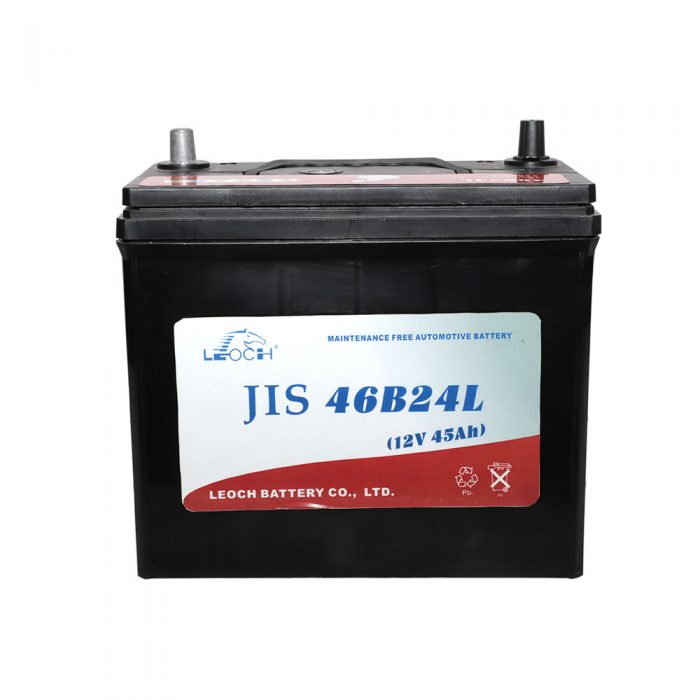

JIS 46B24L (12V45Ah)

JIS SERIES

  • High Capacity.
  • Long life.
  • High CCA and good starting performance.
  • Good charging acceptance and vibration resistant performance.
  • Application of advanced PE type separator.
  • Application of TTP technology.
  • Advanced sulfate-resistant technology.
  • Advanced calcium lead alloy technology, maintenance-free design.
  • Reliable labyrinth-like seal design.
  • Lead alloy terminal apply heavy load.
  • Full ranges models, good appearance and high standard design.

APPLICATIONS

Starting, light and ignition for car, Tractor, Mine vehicle and Mobile machinery shop.

Starting and ignition for the diesel motor or gasoline motor

It can be used as power for car, Tractor, Mine vehicle and Mobile machinery shop.

DETAILS

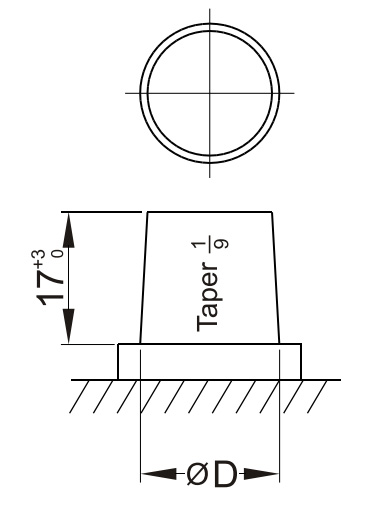

Standard Terminal(mm)

Terminal Type D
Positive Negative
3 14.7 (0, -0.3) 13.0 (0, -0.3)

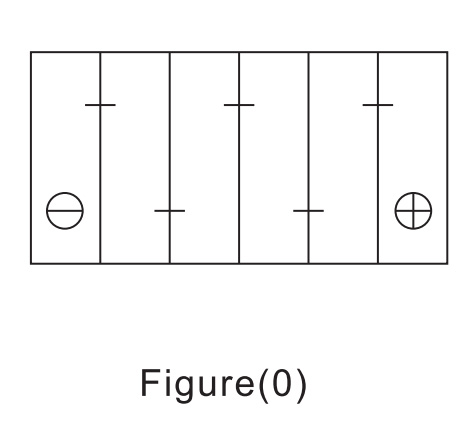

Cell Layout

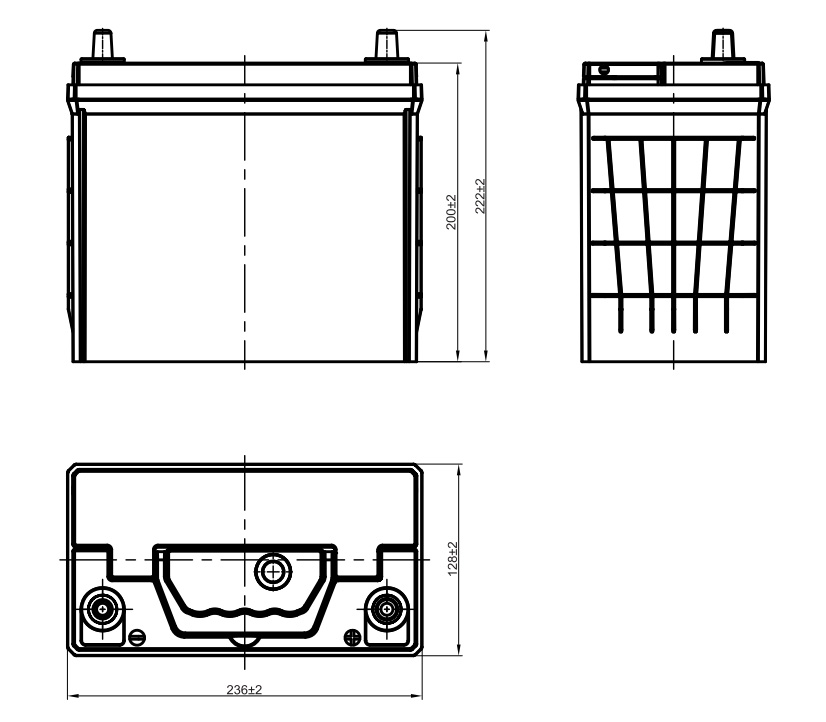

Dimensions (mm)

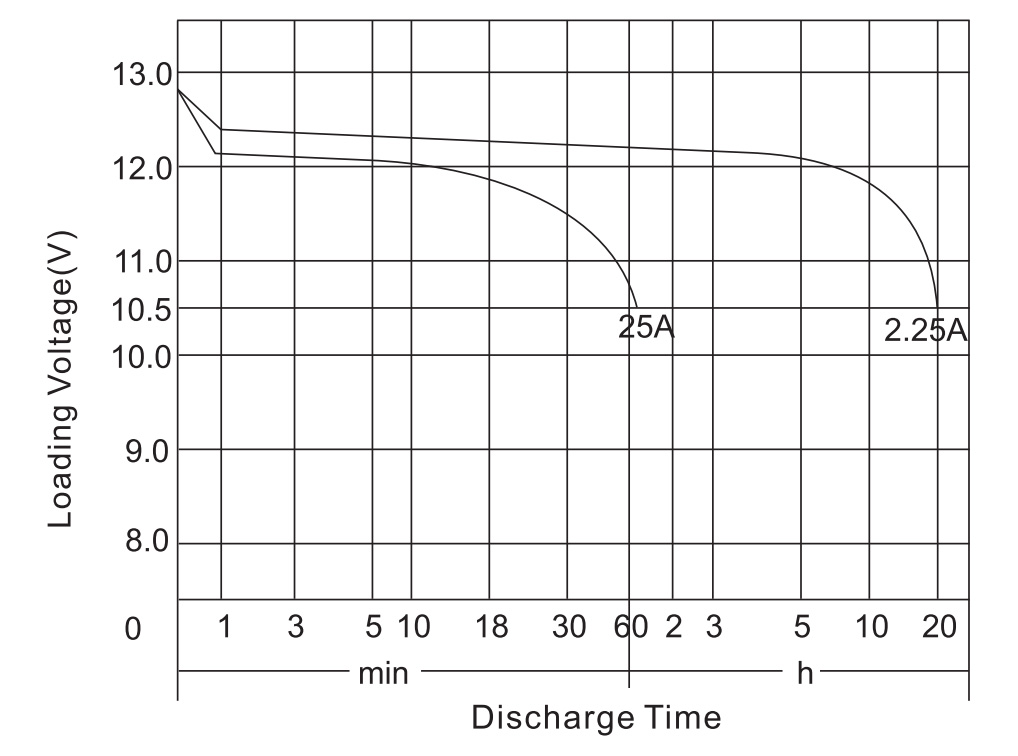

Discharge Characteristics(25°C,70°F)

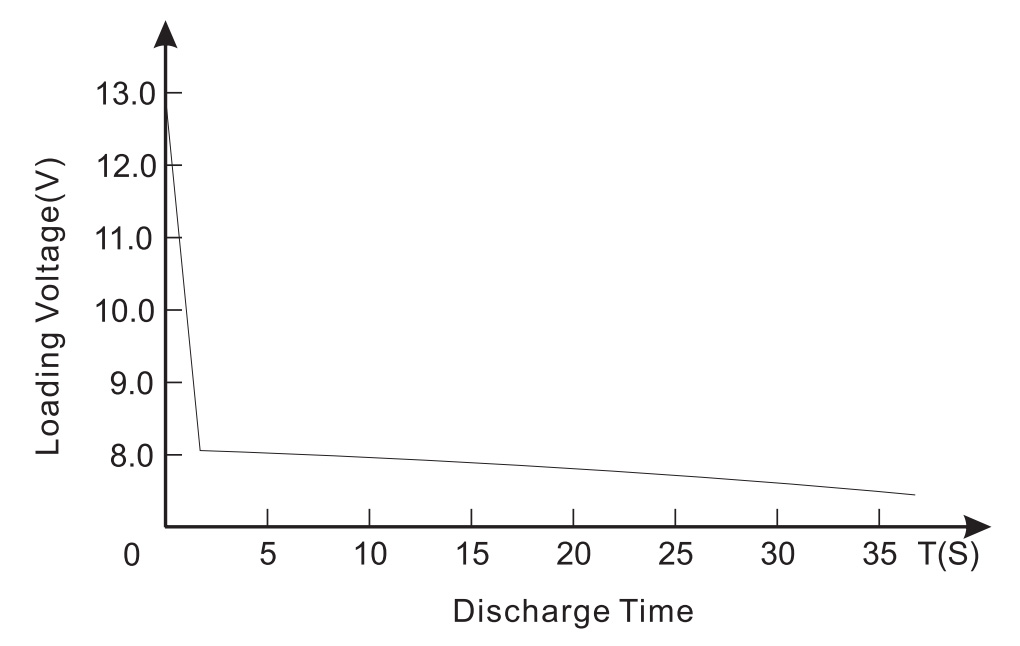

Discharge Characteristics(-18°C,0°F)

SPECIFICATIONS

Physical Specification (mm)
Nominal Voltage 12V
Nominal Capacity(20HR) 45AH
Dimension Length : 236±2mm (9.29 inches)
Width : 128±2mm (5.04 inches)
Container Height : 200±2mm (7.87 inches)
Total Height (with Terminal) : 222±2mm (8.74 inches)
Weight Approx 12.1kg (26.68lbs)
Acid 1.280±0.015g/cm³(25°C)
Standard Terminal 3
Cell Layout 0
Hold-down B0
Cell Plate qty /
Case Black PP Material
Cover Black PP Material
Handle Black PP Material
QTY/PLT/layer /
Electrical Specification
Rated Capacity 20 hour rate(2.25A) 45Ah
Reserve Capacity 70min
Cold Cranking Performance Amps@0°F(-18°C) 350A
