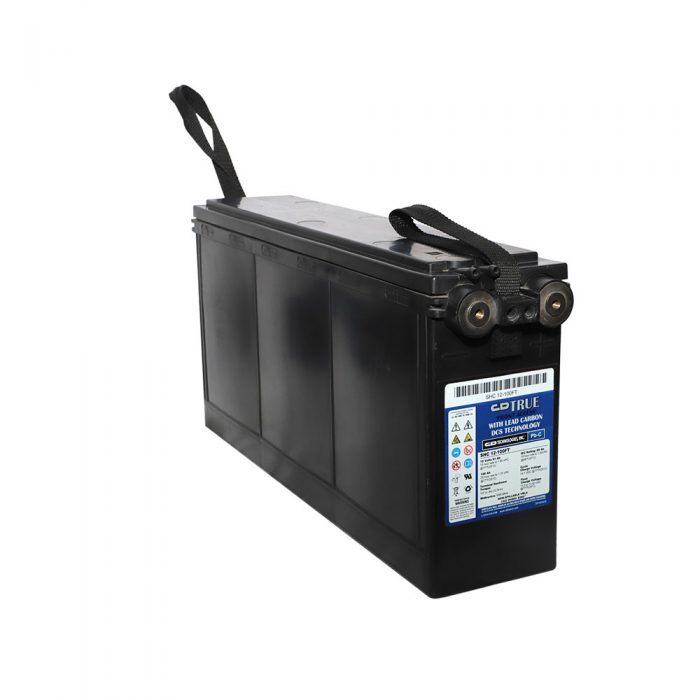

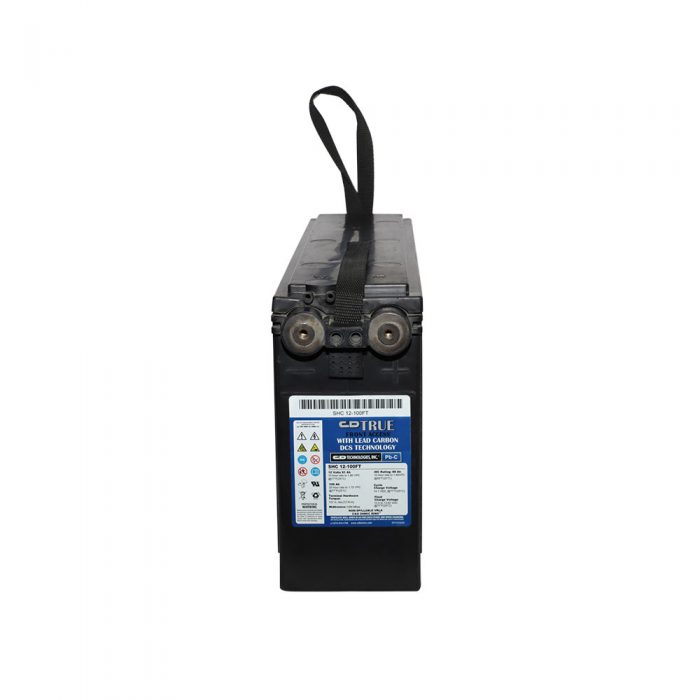

SHC12-100FT

DEEP CYCLE/SOLAR
VALVE REGULATED LEAD ACID BATTERY


  • Long life cycle service design:
    Proven C&D DCS technology, Excellent PSoC and cyclic performance.
  • Leading Charging Acceptance:
    Maximum charge current 0.6C, 300% than normal VRLA, 0.2C to full charging lower than 7 Hrs
  • Extreme Temperature Tolerance:
    -20°C: 16% increase capacity, +35°C: 60% increase cyclic life
  • Compliant to major global specifications:
    BS 6290: Part 4:1997•IEC 60896-21/22, Telcordia SR-4228, Bellcore GR-63-CORE & GR-1089-CORE, UL 94 V-2/V-0 Flame Retardant Polypropylene

APPLICATIONS

Unstable Grid

Hybrid Systems

Renewable Energy

Energy Storage

UPS

DETAILS

SPECIFICATIONS

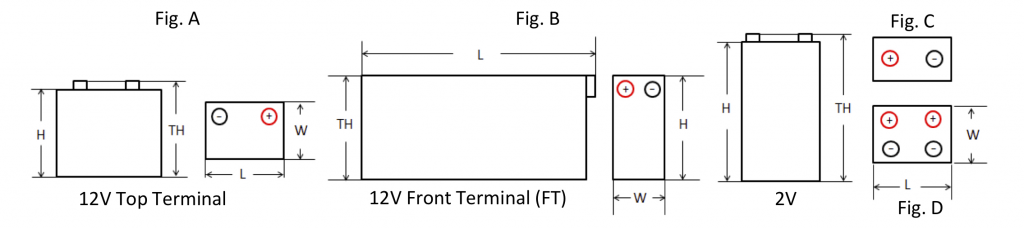

Model V Capacity/Ah Capacity/Ah Dimensions/mm Weight/kg Terminal Type (Bolt) Figure
C10,1.8V@25°C C20,1.75V@25°C L*W*H*TH/mm
SHC12-100FT 12 91 100 511 110 237 237 34 Inserted (M6) B
Operating Temperature Range with temperature compensation Discharge: -40°F (-40°C) to +160°F (71°C).
Charge: -10°F (-23°C) to +140°F (60°C)
Maximum Charging Current Limit 0.6 C10
Floating Charging Voltage 2.25 to 2.27 V for 2V cell, and 13.5 to 13.62V for 12V block @ 25°C(77°F)
Self Discharge Battery can be stored up to 6 months at 25°C(77°F) before a freshening charge is required. Batteries stored at temperatures greater than 25°C(77°F) will require recharge sooner than batteries stored at lower temperatures.
Equalize charge & cycle service voltage 2.35V for 2V cell, and 14.1V for 12V block @ 25°C(77°F)
Terminal Threaded copper alloy insert terminal to accept: M6 bolt.
Terminal Hardware Initial Torque 12 N-m (107 in.-lbs) for: SHC12-100 FT
