Powerwall 200AH-10000U

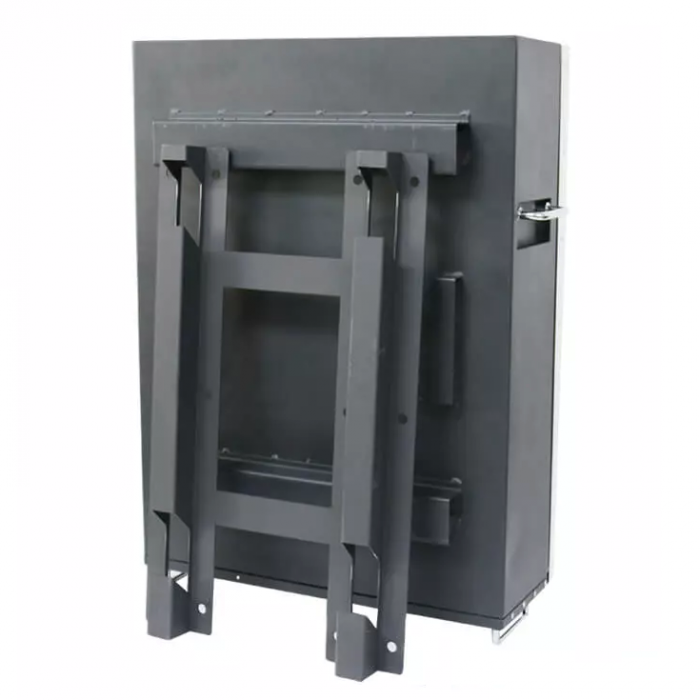

BSLBATT POWERWALL-51.2V

  • Solar day and night – Powerwall stores solar to continuously power your home with sustainable energy day and night.
  • A self-powered home – Use solar and Powerwall to reduce reliance on the grid and create a zero-emissions home.
  • Back-up power – Protect your home from a power outage with seamless and reliable backup power.
  • Control your energy – Seamlessly monitor and automatically manage your Powerwall, solar panels, Model S or Z with the BSLBATT App.
  • Stay protected – reserve a certain percentage of your Powerwall to protect your home from a utility outage and extend the hours of backup.
  • Better over time – With over-the-air software updates, Powerwall will continue to improve and adapt to your lifestyle.
  • Compact and simple – Powerwall is a completely automated system that installs easily and requires no maintenance.
  • Completely safe – Liquid thermal controls and touch-safe technology maximize battery life and safety.

Gallery

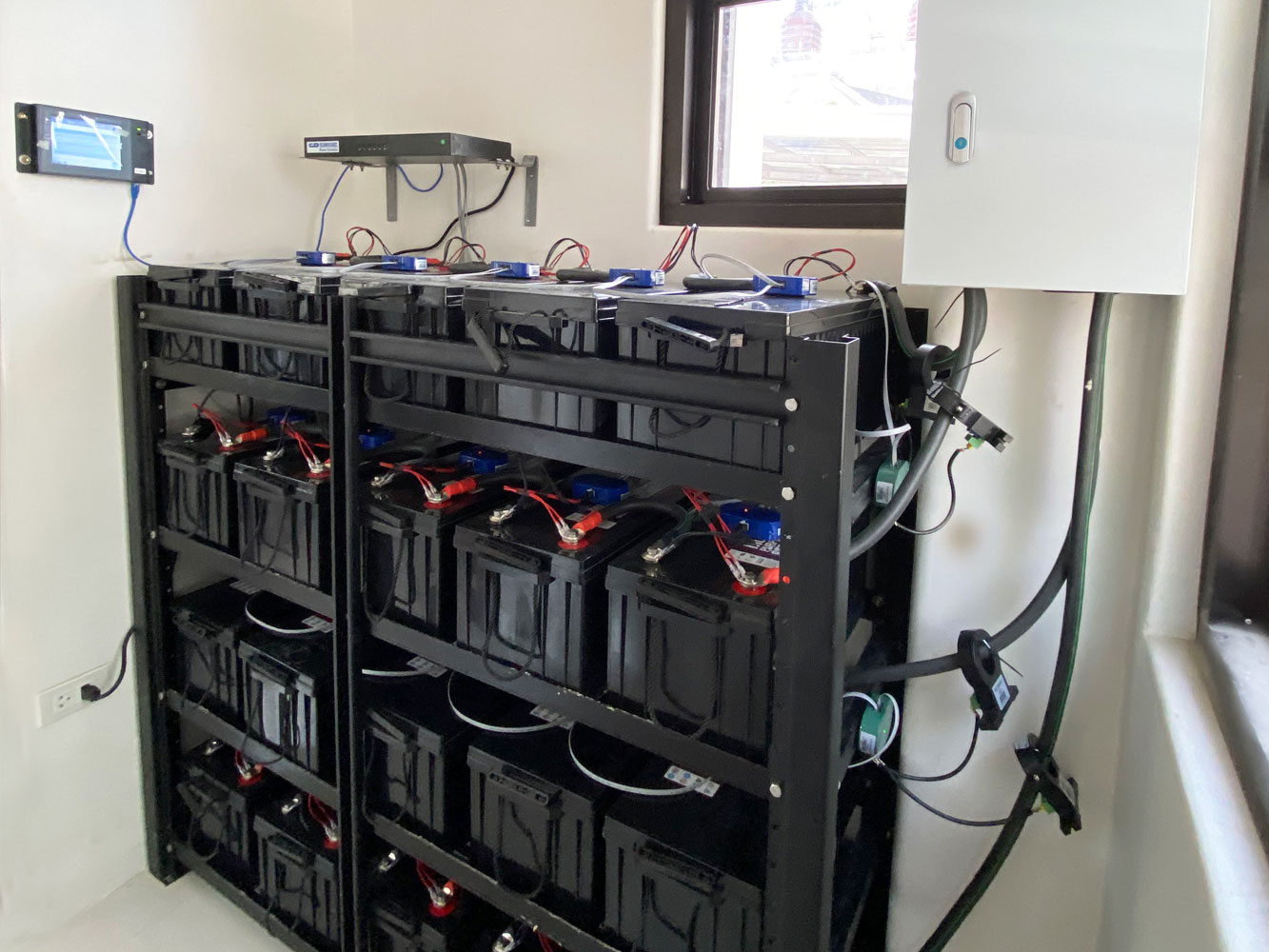

Powerwall 100AH-5000U

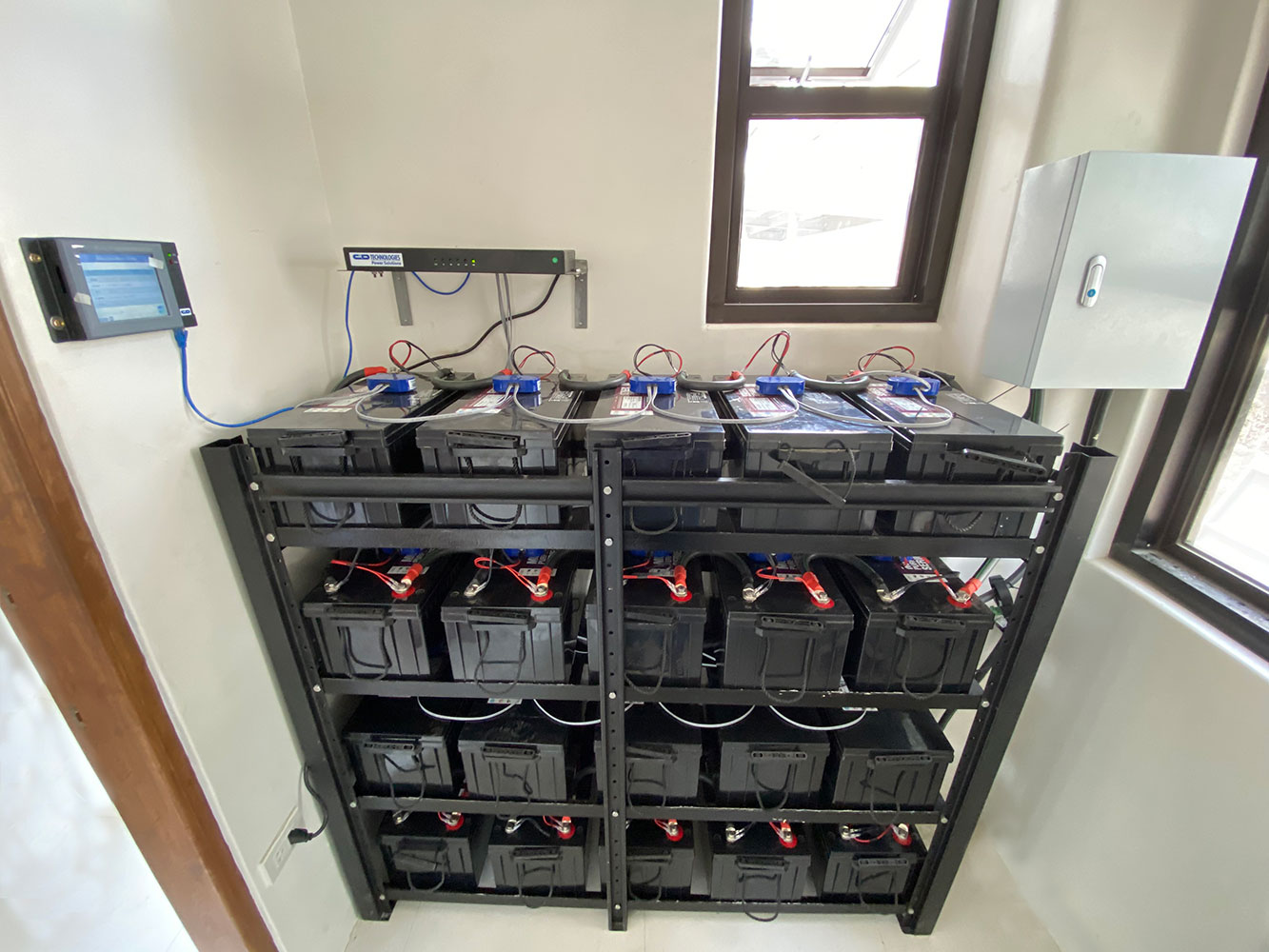

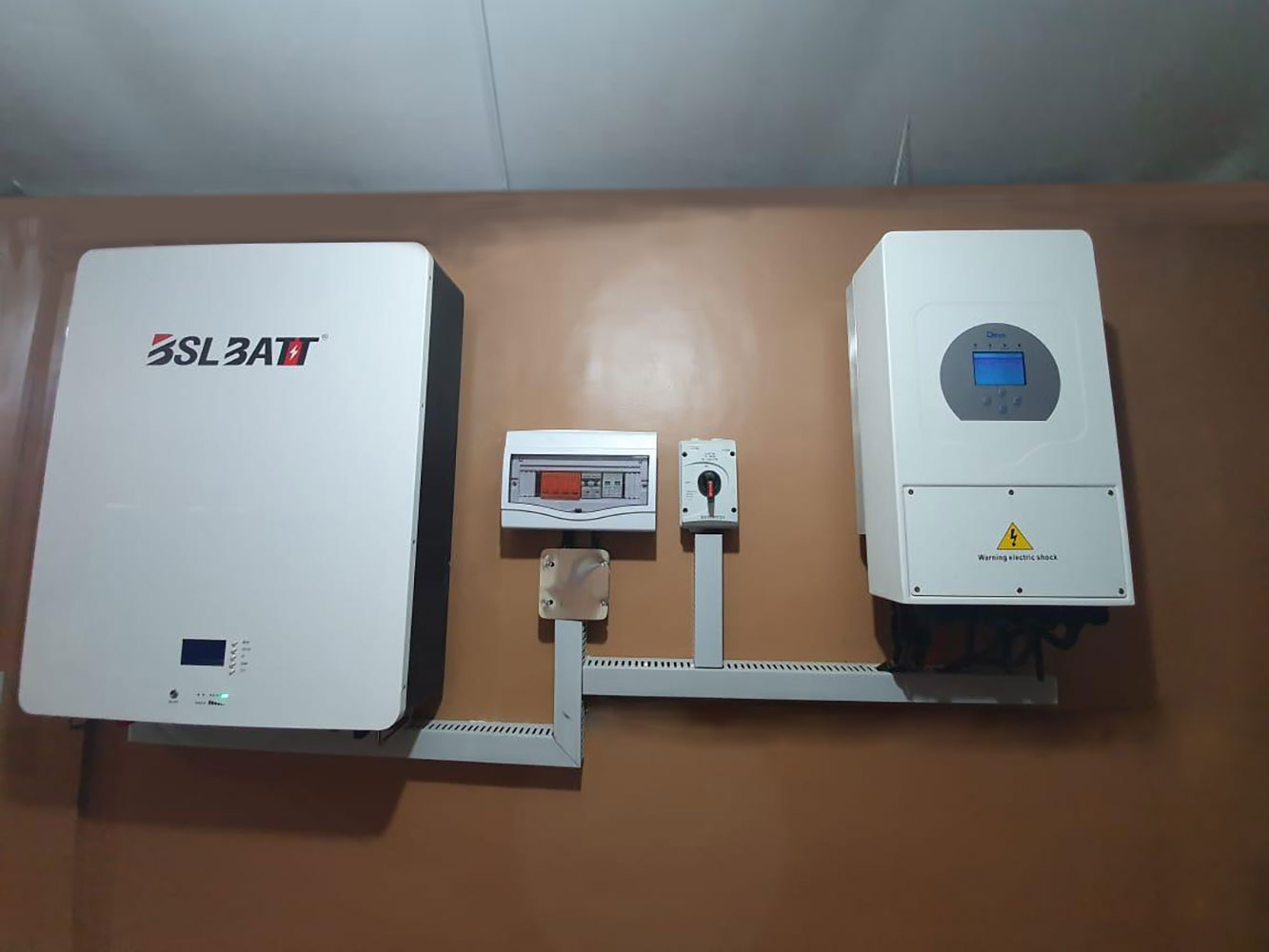

BSL-BATT-INSTALLATION
BSL-BATT-INSTALLATION

FEATURES

Designed to allow easy wall-mounted or floor-standing installation for both indoor and outdoor applications.

Inverter connections are simplified, reducing installation time and costs.

BSLBATT-10000U places the highest priority on safety and utilizes the same technology for its ESS products that has a proven safety record in its automotive battery.

The new BSLBATT-10000U series features industry-leading continuous power (10240kWH for BSLBATT-10000U) and DC round-trip efficiency (95%).

BSLBATT’s L&S (Lamination & Stacking) technology provides durability ensuring 80% of capacity retention after 10 years.

DETAILS

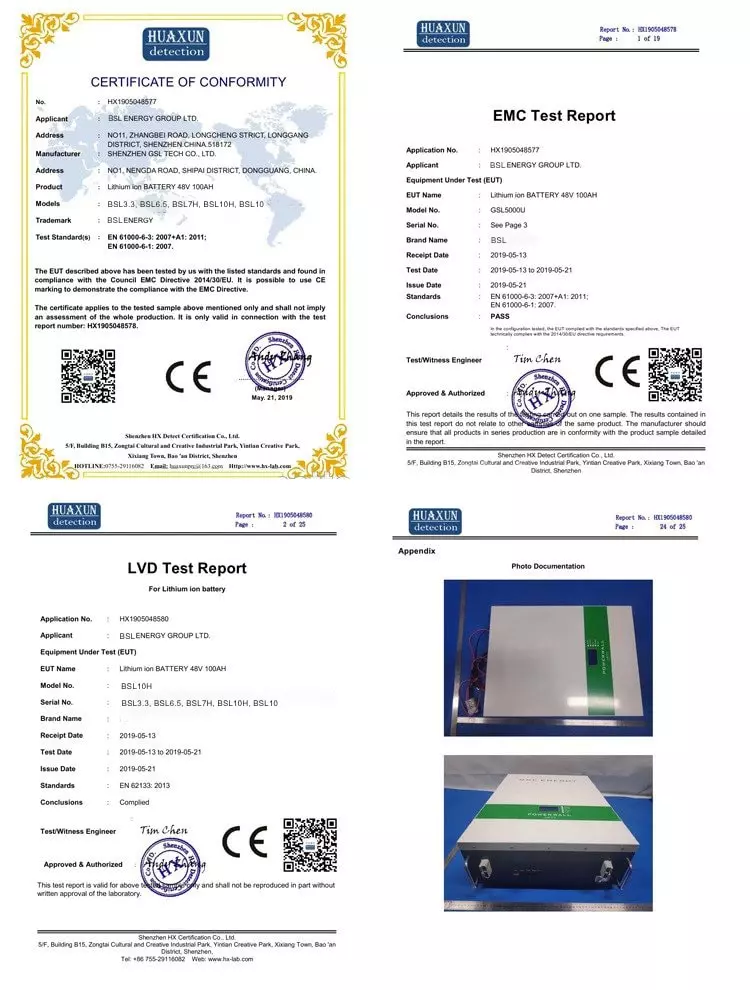

Certifications

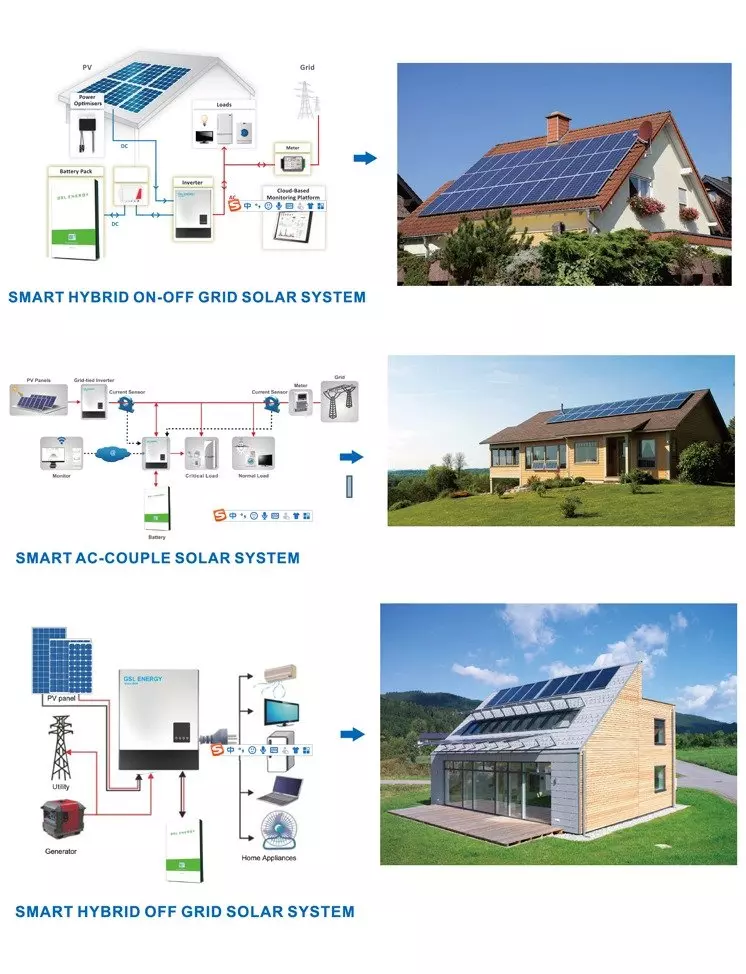

Systems

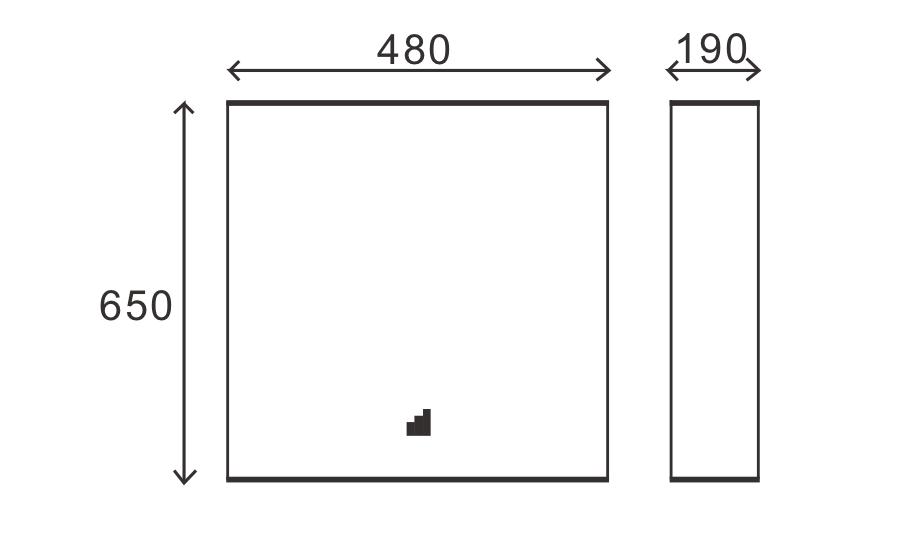

Dimensions

Tests

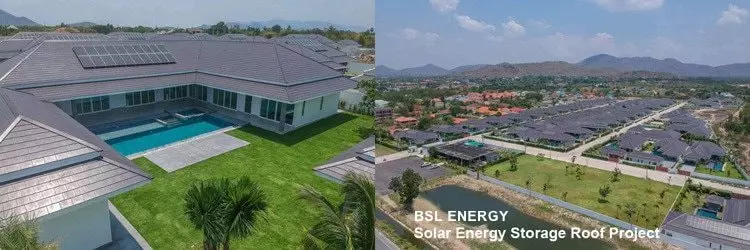

Applications

GENERAL INFORMATION

Item General Parameter Remarks
Combination method 16S4P
Rated Capacity Typical 200Ah
Minimum 198Ah		 Standard discharge after standard charge (package)
Factory Voltage 51.2V Mean Operation Voltage
Voltage at end of charge 44.0V Discharge Cut-off Voltage
Charging Voltage 58.0V
Internal Impedance ≤ 50mΩ Internal resistance measured at AC 1KHz after 50% charge.
The measure must uses the new batteries that within one week after shipment and cycles less than 5 times.
Standard Charge
Max Charge		 Constant Current 40A
100A		 Charge Time: Approx. 5-6hrs
Standard discharge Constant current: 50A
Maximum Continuous Discharge Current 100A
Maximum Discharge Current 300A
Operation Termperature Range Charge: 0~45°C
Discharge:-20~55°C		 50±25%R.H.Bare Cell
Storage Temperature Range Less than 12 months: -10~35°C
Less than 3 months: -10~45°C
Less than 7 days: -20~65°C		 60±25%R.H. at the shipment state
Dimensions 650*480*190 mm Include case
Weight 98kg Include case
Energy 10240 WH Include case
Gravimetric specific energy 104.5 WH/kg Include case
Click here for a complete list of specs
