Thermally welded case-to-cover bond to eliminate leakage
Patented UL Recognized Flame-arresting vents in each cell for safety and long life.
Can be operated in upright, side or end mounting orientation.
Flame retardant polypropylene case and cover compliant with UL94V-2
Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance.
Patented Long Life Alloy having the lowest calcium levels in the industry – minimizing grid growth, reducing gassing, and extending battery life
Proprietary Fixed Orifice Plate Pasting technology applying active materials on both sides of the grid for consistent cell- to-cell performance, higher capacity and uniform grid protection.
Operating Temperature Range with temperature compensation
Discharge: -40°F (-40°C) to +160°F (71°C)
Charge: -10°F (-23°C) to +140°F (60°C)
Nominal Operating Temperature Range
74°F (23°C) to +80°F (27°C)
Recommended Maximum Charging Current Limit
C/5 amperes @ 20hr rate
Float Charging Voltage
13.65 ± 0.15 VDC average per 12V unit
Maximum AC Ripple (Charger)
0.5% RMS or 1.5% P-P of float charge voltage recommended for best results. Max voltage allowed = 1.4% RMS (4% P-P) Max current allowed = C/20
Self Discharge
Battery can be stored up to 6 months at 77°F (25°C) before a freshening charge is required. Batteries stored at temperatures greater than 77°F (25°C) will require recharge sooner than batteries stored at lower temperatures.
Equalize charge and cycle service voltage
14.40 to 14.80 VDC average per 12V unit @ 77°F (25°C)

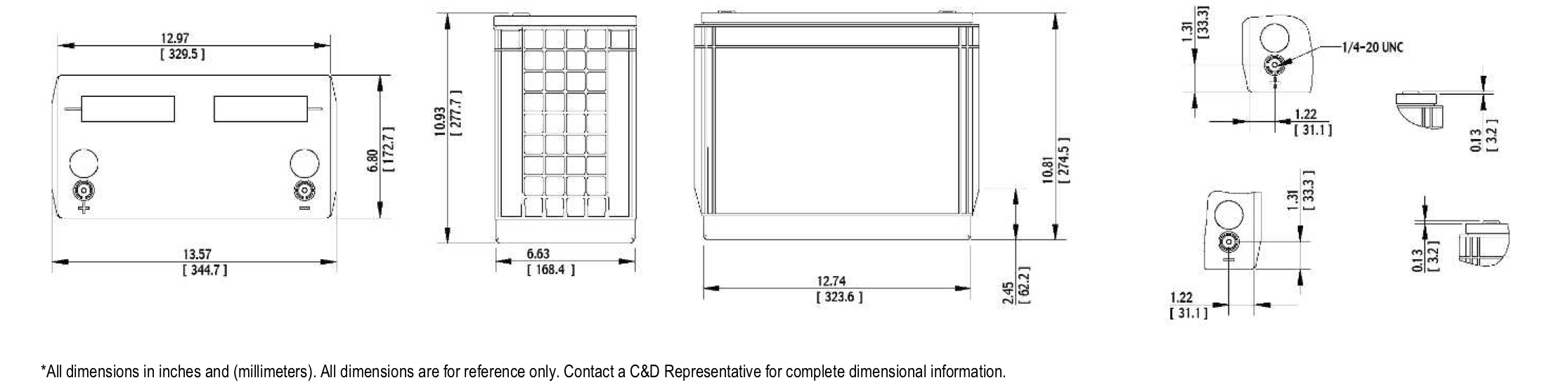

Terminal
Threaded copper alloy insert terminal to accept 1/4-20 UNC bolt
