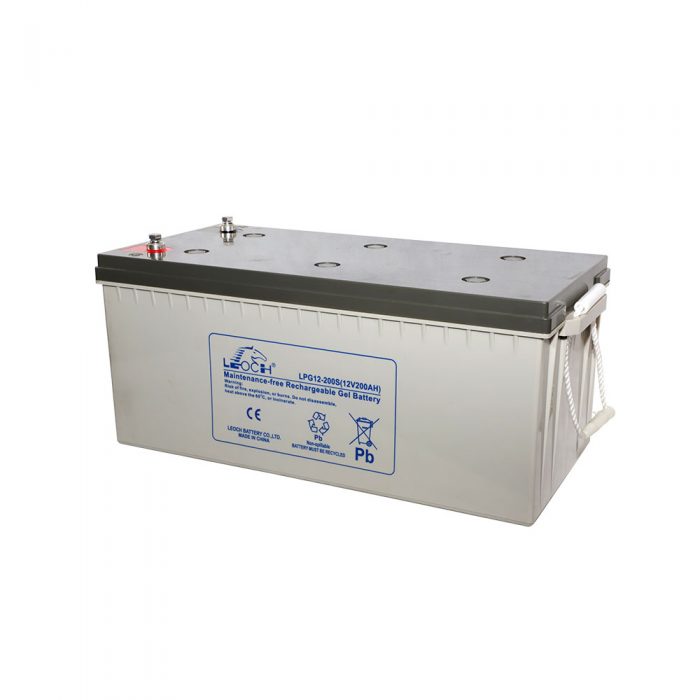

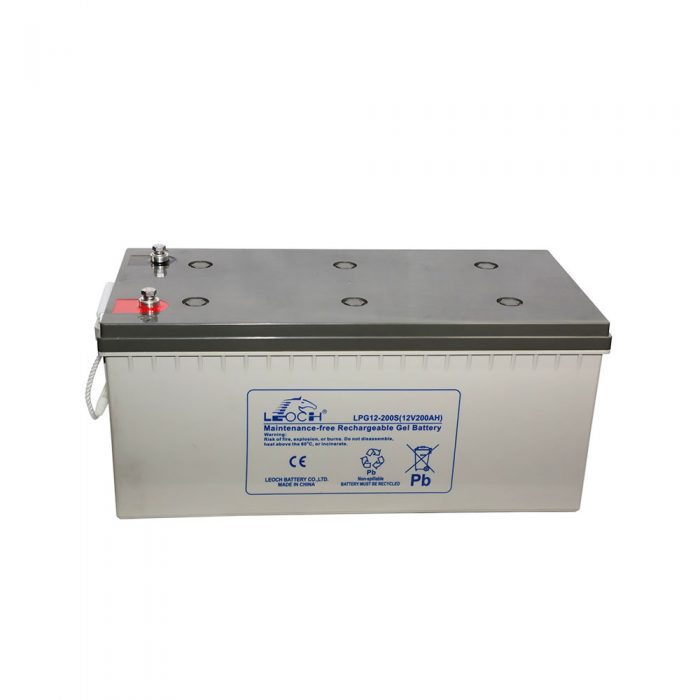

LPG12-200S(12V200AH)

LPG SERIES-AGM&GEL Battery


  • The maximum design life up to 16 years
  • Long time discharge
  • Suitable for space and storage electric power use
  • Special plate design, long cycle lifetime
  • Using special lead-calcium alloy to boost up the grid anti-corrosive performance and extend the battery using lifetime
  • Using special separator to boost up the battery performance inside
  • High thermal capacity, reduce the risk of thermal out of control and drying hard, can be used in bad environment
  • High gas recombined reaction efficiency
  • Little water losing, no electrolyte stratification phenomenon
  • Long storage time
  • Good deep discharge resilience performance
  • Using gas silicon dioxide, small granule degree, bigger than surface area

APPLICATIONS

All purpose

Uninterruptable Power Supply (UPS)

Electric Power System (EPS)

Emergency backup power supply

Emergency light

Railway signal

Aircraft signal

Alarm and security system

Electronic apparatus and equipment

Communication power supply

DC power supply

Auto control system

DETAILS

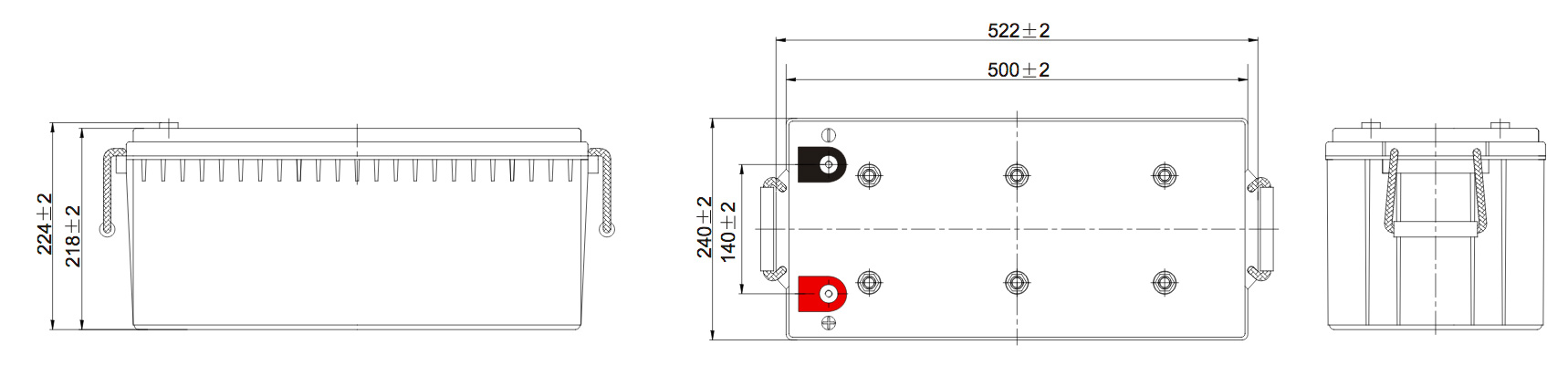

Dimensions

T11 Terminal Unit: mm [inches]



Discharge Characteristics

Float Charging Characteristics

Temperature Effects in Relation to Battery Capacity

Effect of Temperature on Long Term Float Life

Cycle Life in Relation to Depth of Discharge

Genereal Relation of Capacity VS. Storage Time

SPECIFICATIONS

Nominal Voltage 12V
Nominal Capacity(20HR) 200.0AH
Dimensions Length : 522±3mm (20.55 inches)
Width : 240±3mm (9.45 inches)
Container Height : 218±3mm (8.58 inches)
Total Height (with Terminal) : 224.5±3mm (8.81 inches)
Approx Weight Approx 60.4 kg (133.2lbs)
Terminal T11
Container Material ABS
Rated Capacity 206.0 AH/10.3A  (20hr ,1.80V/cell,25°C/77°F)
200.0 AH/20.0A (10hr,1.80V/cell,25°C/77°F)
170.0 AH/34.0A (5hr,1.75V/cell,25°C/77°F)
147.6 AH/49.2A (3hr,1.75V/cell,25°C/77°F)
119.4 AH/119.4A (1hr,1.60V/cell,25°C/77°F)
Max. Discharge Current 2000A (5s)
Internal Resistance Approx 2.9m Ω
Operating Temp.Range Discharge : -15~50°C (5~122°F)
Charge : 0~40°C (32~104°F)
Storage : -15~40°C (5~104°F)
Nominal Operating Temp. Range 25±3°C (77±5°F )
Cycle Use Initial Charging Current less than 30.0A.Voltage 14.4V~15.0V at 25°C(77°F) Temp. Coefficient -30mV/°C
Standby Use No limit on Initial Charging Current Voltage 13.5V~13.8V at 25°C (77°F) Temp. Coefficient -20mV/°C
Capacity affected by Temperature 40°C (104°F) 103%
25°C (77°F) 100%
0°C (32°F) 86%
Self Discharge Leoch LP series batteries may be stored for up to 9 months at 25° C (77°F) and then a freshening charge is required.For higher temperatures the time interval will be shorter.
