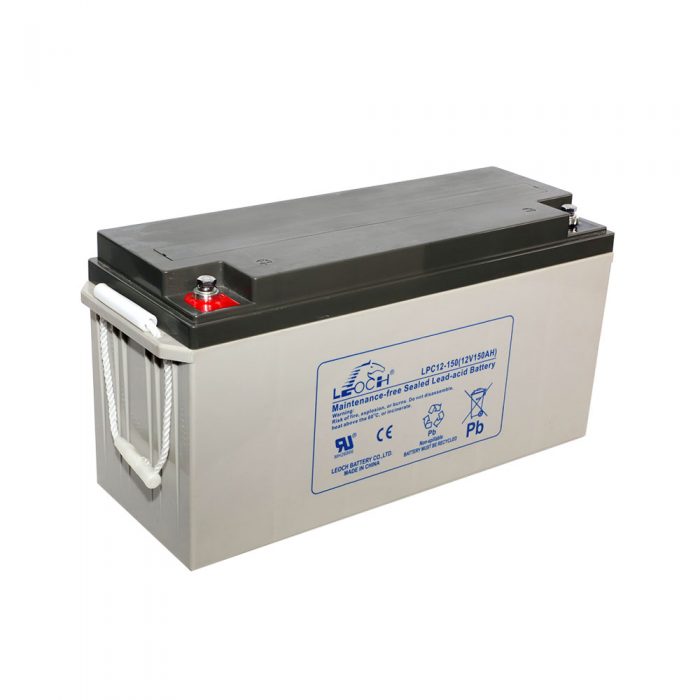

LPC12-150 (12V150AH)

Using oxygen recombination technology: maintenance-free
Special grid alloy: less gassing, less self-discharging
For longer cycle life: special paste formula, over dimensioned negative plate, optimised
manufacturing process , additives for deep discharge
Special anti-vibration design
High quality AGM separator: extend cycle life and prevent micro short circuit
ABS material: increase the strength of battery container

Electric tools

Vehicle in place of walking

Lawn mowers

Golf trolleys and golf cart

Portable apparatus, lights and instruments

Electric toys

Illumination light

Fire alarms

Portable power

Wheelchairs

Medical equipments

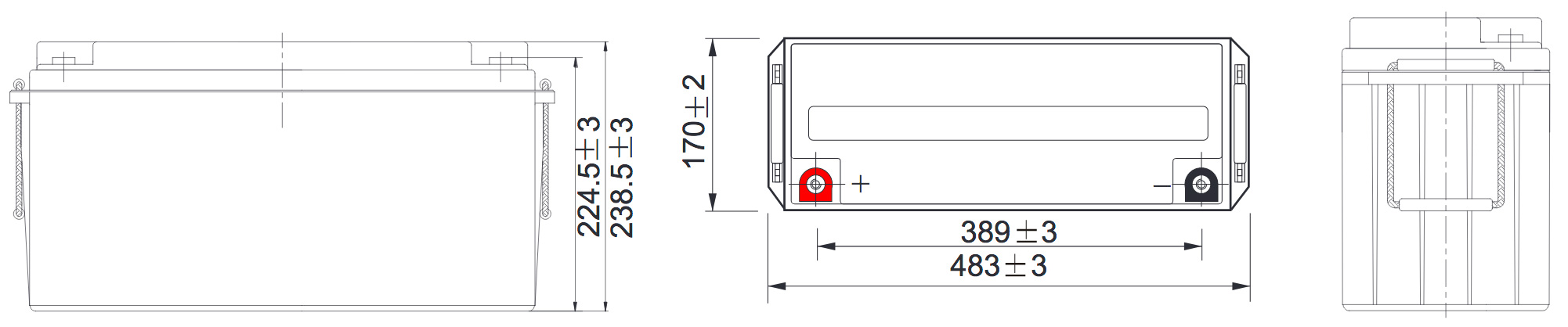

T11 Terminal Unit: mm [inches]

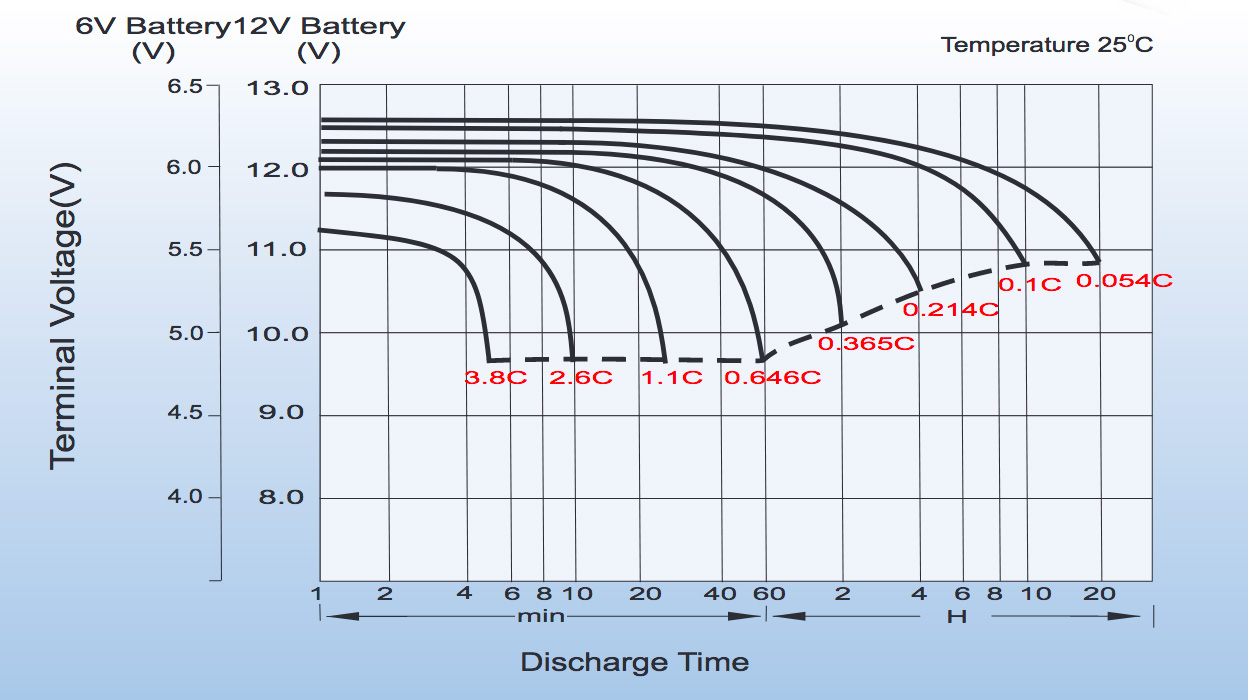

Discharge Characteristics

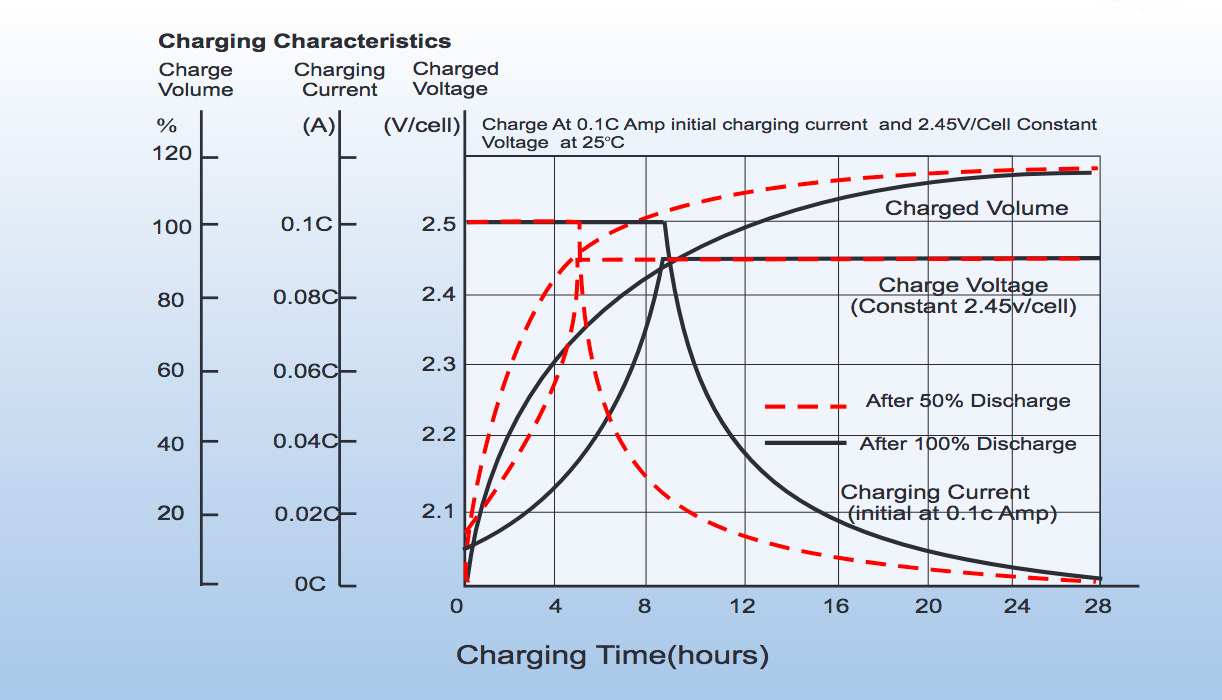

Charging Characteristics (cycle use)

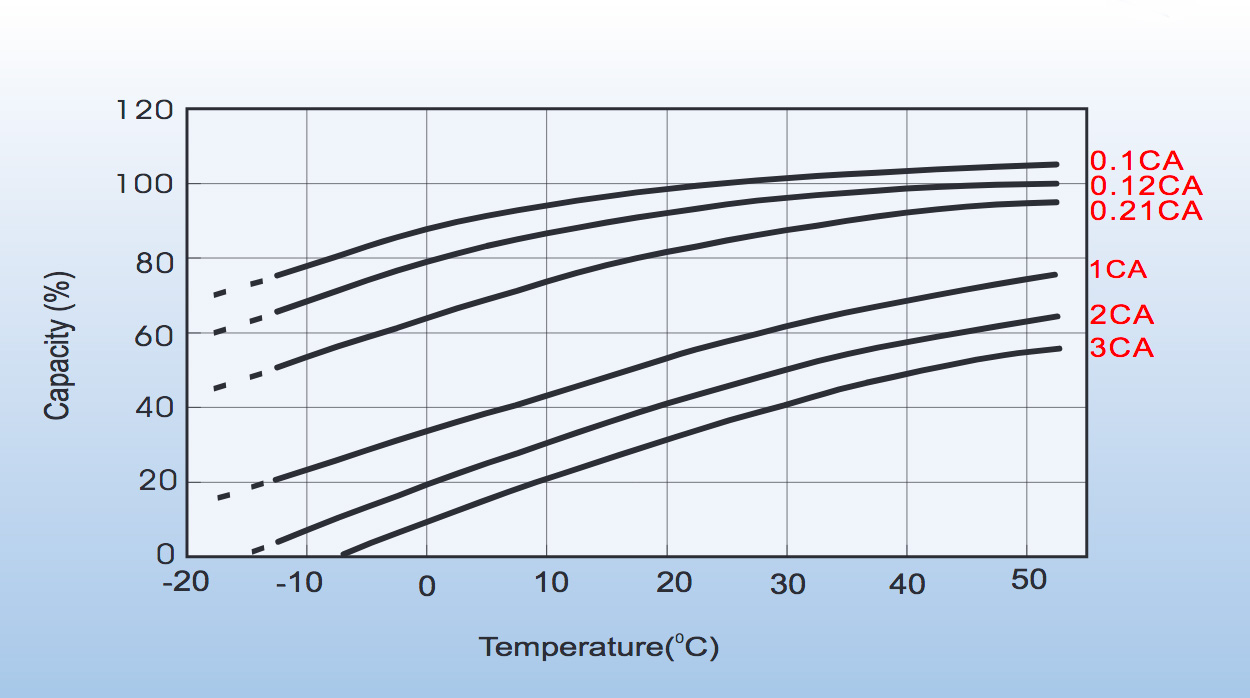

Temperature Effects in Relation to Battery Capacity

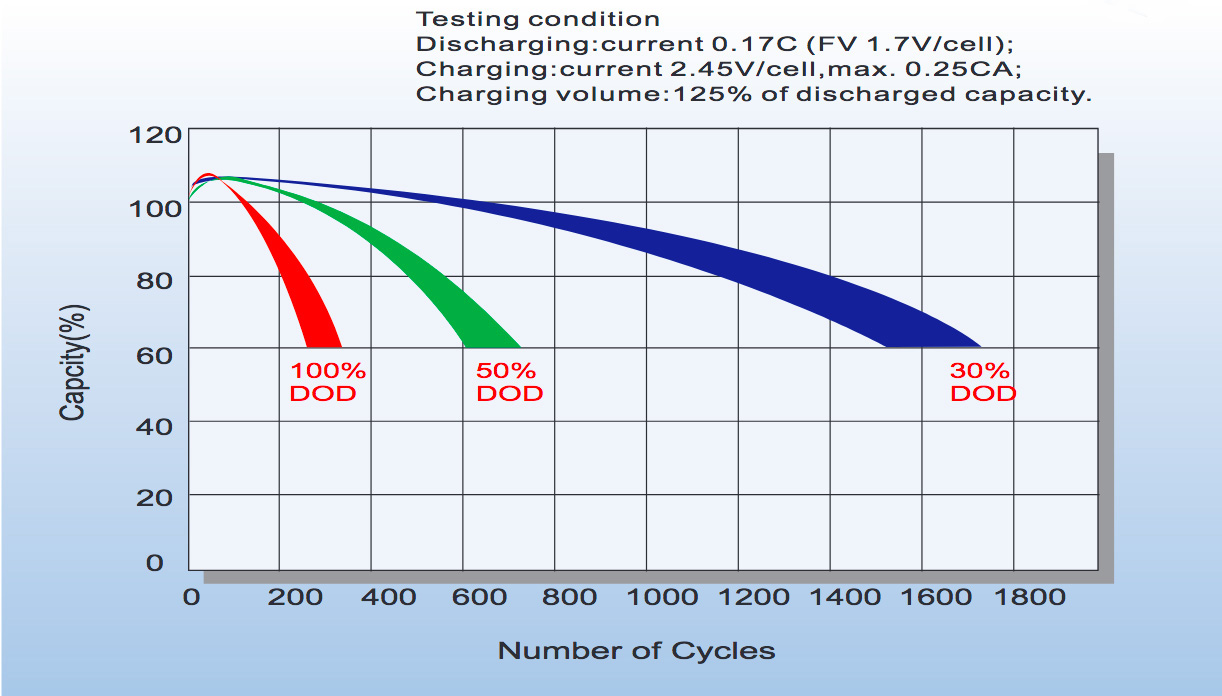

Cycle Life in Relation to Depth of Discharge

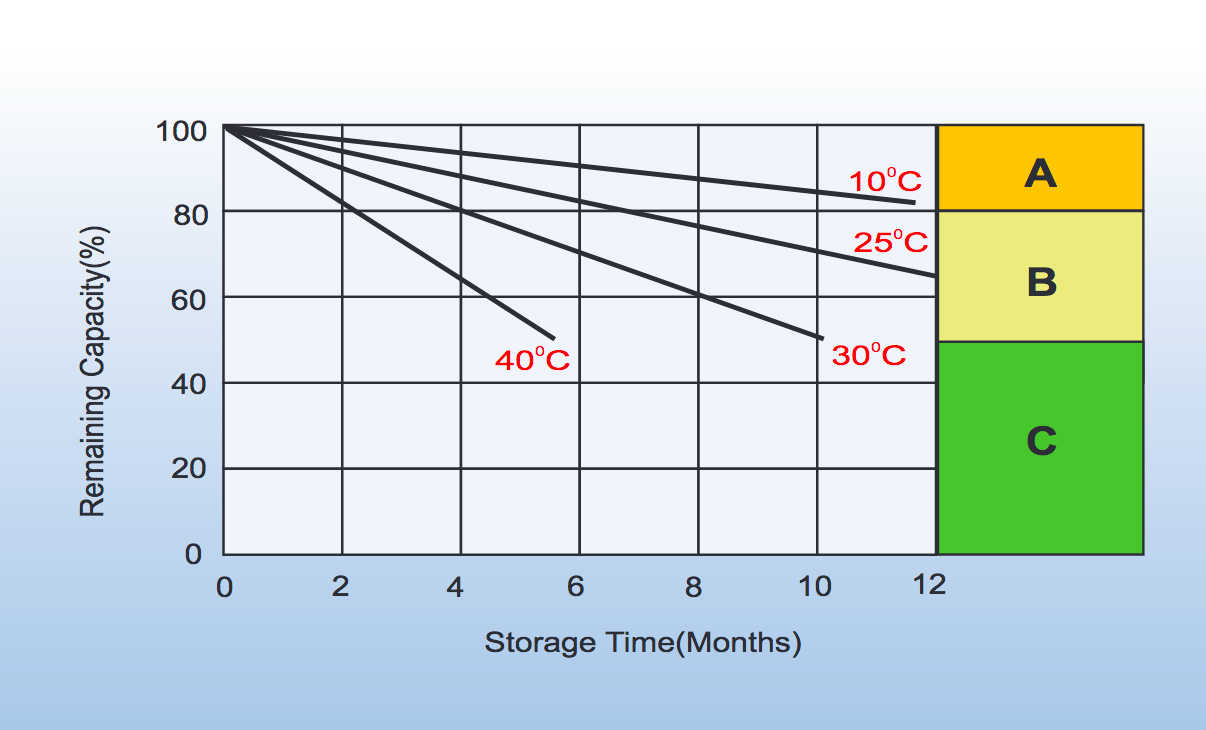

Self Discharge Characteristics

No supplementary charge required(Carry out supplementary charge before use if 100% capacity is required.
Supplementary charge required before use.Optional charging way as below:
1. Charged for above 3 days at limted current 0.25CAand constant volatge 2.25V/cell.
2. Charged for above 20hours at limted current 0.25CAand constant volatge 2.45V/cell.
3.Charged for 8~10hours at limted current 0.05CA.
Supplementary charge may often fail to recover the capacity. The battery should never be left standing till this is reached.

Nominal Voltage	12V
Nominal Capacity(20HR)	150.0AH
Dimensions	Length : 483±3mm (19.01 inches) Width : 170±2mm (6.69 inches) Container Height : 238.5±3mm (9.39 inches) Total Height (with Terminal) : 238.5±3mm (9.39 inches)
Approx Weight	Approx 43.2 kg (95.3lbs)
Terminal	T11
Container Material	ABS
Rated Capacity	160.8 AH/8.04A (20hr ,1.80V/cell,25°C/77°F) 150.0 AH/15.0A (10hr,1.80V/cell,25°C/77°F) 131.6 AH/26.3A (5hr,1.75V/cell,25°C/77°F) 119.3 AH/39.8A (3hr,1.75V/cell,25°C/77°F) 96.9 AH/96.9A (1hr,1.60V/cell,25°C/77°F)
Max. Discharge Current	1500A (5s)
Internal Resistance	Approx 2.5 mΩ
Operating Temp.Range	Discharge : -15～50°C (5～122°F) Charge : 0～40°C (32～104°F) Storage : -15～40°C (5～104°F)
Nominal Operating Temp. Range	25±3°C (77±5°F )
Cycle Use	Initial Charging Current less than 45.0A.Voltage 14.4V~15.0V at 25°C(77°F)Temp. Coefficient -30mV/°C
Standby Use	No limit on Initial Charging Current Voltage 13.5V~13.8V at 25°C (77°F) Temp. Coefficient -20mV/°C
Capacity affected by Temperature	40°C (104°F) 103% 25°C (77°F) 100% 0°C (32°F) 86%
Self Discharge	Leoch LP series batteries may be stored for up to 6 months at 25° C (77°F) and then a freshening charge is required.For higher temperatures the time interval will be shorter.
